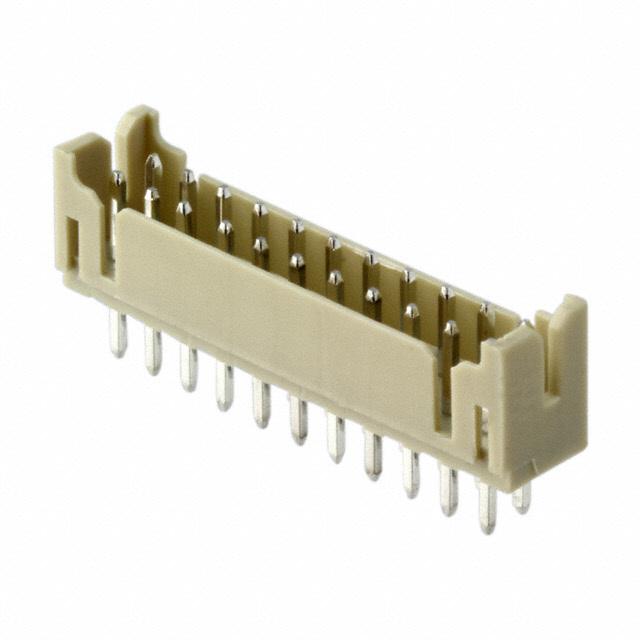

TE Connectivity AMP Connectors 2-1470109-2

2-1470109-2 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
22
Contact Finish - Post:
Tin
edacadModel:
2-1470109-2 Models
Overall Contact Length:
-
Insulation Height:
0.256" (6.50mm)
Insulation Color:
Natural
REACH Status:
Vendor Undefined
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4022090
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
100VDC
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
AMPMODU
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
1470109
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 2-1470109-2. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 22. It has possible tin contact post finishing. 0.256" (6.50mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is vendor undefined. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 100vdc voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 3a. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 1470109, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1470109 Drawing 17/Sep/2015(PCN Design/Specification)
pdf icon
2-1470109-2(Datasheets)
