HARTING 09185647323
Product Information

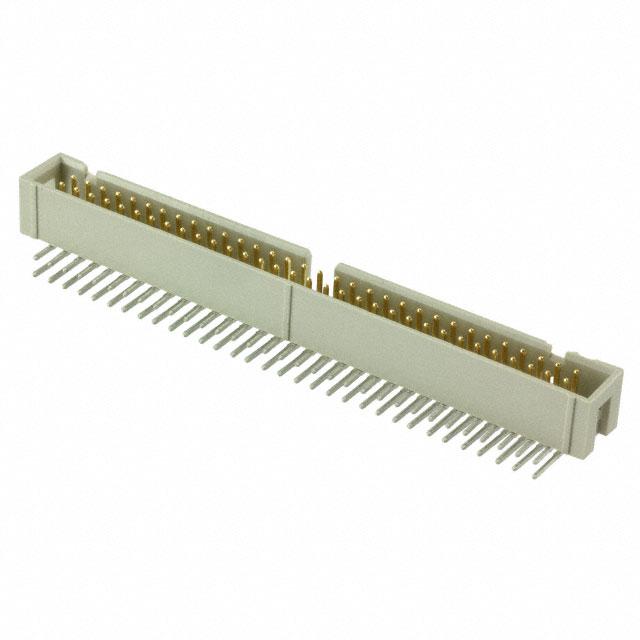

The 09185647323 is a versatile connector header with a right-angle orientation for through-hole mounting. It boasts 64-way connections ensuring robust and reliable connections on PCBs, making it a top selection for electronic assemblies requiring careful alignment.
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
64
Contact Finish - Post:
-
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.366" (9.30mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
09185647323 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4286646
Insulation Color:
Gray
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.242" (6.15mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.114" (2.90mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
SEK
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09185647323 on website for other similar products.
We accept all major payment methods for all products including ET11161536. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09185647323 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09185647323. You can also check on our website or by contacting our customer support team for further order details on HARTING 09185647323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11161536 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11161536.
Yes. We ship 09185647323 Internationally to many countries around the world.
The HARTING 09185647323 is a high-quality connector header designed for versatile applications. With 64 positions and a through-hole right-angle configuration, It offers reliable and secure connectivity for various electronic devices and systems. Its 64 positions, through-hole mounting, and right-angle design make it a reliable choice for engineers seeking efficient and robust connectivity solutions.
Features and Benefits:
Application Information of HARTING 09185647323:
The HARTING 09185647323 finds usage in a wide range of applications across various industries, Including:
