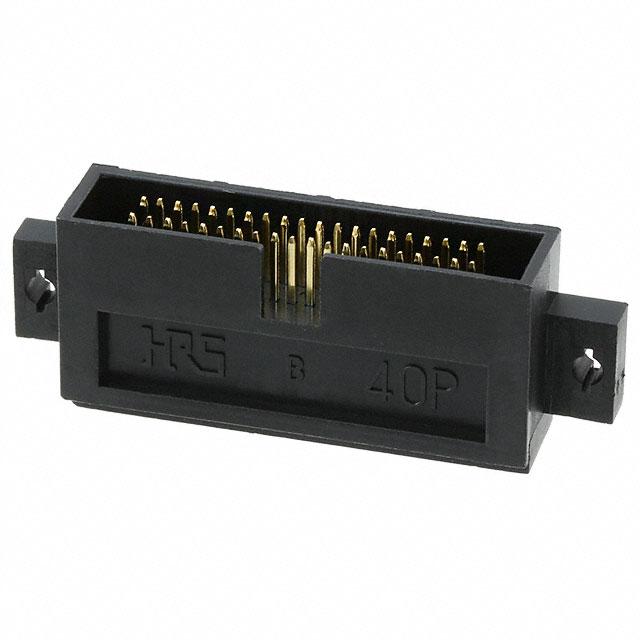

Hirose Electric Co Ltd HIF6B-40PA-1.27DS(71)
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 85°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
40
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.335" (8.51mm)
Voltage Rating:
300V
edacadModel:
HIF6B-40PA-1.27DS(71) Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4306399
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.205" (5.21mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
0.5A
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
HIF6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
HIF6
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search HIF6B-40PA-1.27DS(71) on website for other similar products.
We accept all major payment methods for all products including ET10956859. Please check your shopping cart at the time of order.
You can order Hirose Electric Co Ltd brand products with HIF6B-40PA-1.27DS(71) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hirose Electric Co Ltd HIF6B-40PA-1.27DS(71). You can also check on our website or by contacting our customer support team for further order details on Hirose Electric Co Ltd HIF6B-40PA-1.27DS(71).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10956859 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Hirose Electric Co Ltd" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10956859.
Yes. We ship HIF6B-40PA-1.27DS(71) Internationally to many countries around the world.
This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is HIF6B-40PA-1.27DS(71). It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 85°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 40. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.335" (8.51mm) of insulation height. Moreover, the product has a nominal 300v voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.205" (5.21mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 0.5a. It has 0.050" (1.27mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product hif6, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to hif6, a base product number of the product. The product is designated with the ear99 code number.
