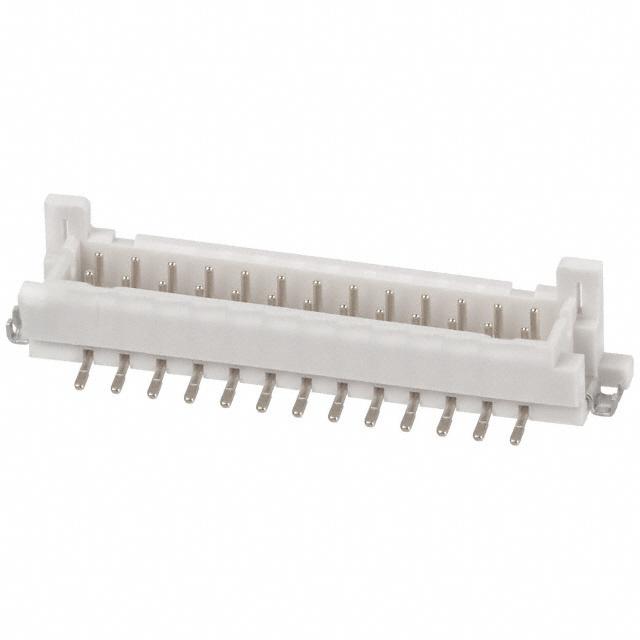

Hirose Electric Co Ltd DF11GZ-26DP-2V(20)
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-30°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
26
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.283" (7.19mm)
Voltage Rating:
250V
edacadModel:
DF11GZ-26DP-2V(20) Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/934387
Insulation Color:
Beige
Contact Shape:
Circular
Mated Stacking Heights:
8.2mm, 8.45mm, 9.55mm
Insulation Material:
Polyamide (PA), Nylon
Package:
Tube
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Series:
DF11
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
DF11G
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DF11GZ-26DP-2V(20) on website for other similar products.
We accept all major payment methods for all products including ET10933594. Please check your shopping cart at the time of order.
You can order Hirose Electric Co Ltd brand products with DF11GZ-26DP-2V(20) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hirose Electric Co Ltd DF11GZ-26DP-2V(20). You can also check on our website or by contacting our customer support team for further order details on Hirose Electric Co Ltd DF11GZ-26DP-2V(20).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10933594 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Hirose Electric Co Ltd" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10933594.
Yes. We ship DF11GZ-26DP-2V(20) Internationally to many countries around the world.
This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF11GZ-26DP-2V(20). It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -30°c ~ 85°c operating temperature range. The product carries possible position value of 26. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.283" (7.19mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, beige is the insulation color of the product. It has a typical circular shape. The mated stacking heights of a bespoke product includes 8.2mm, 8.45mm, 9.55mm. It has a robust polyamide (pa), nylon insulation material. It is shipped in tube package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in surface mount configuration. The product df11, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to df11g, a base product number of the product. The product is designated with the ear99 code number.
