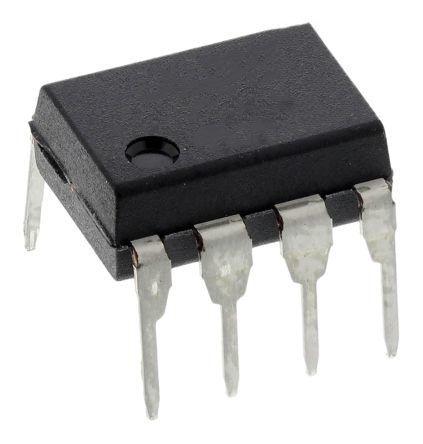

Maxim MAX522CPA+, 2-Channel Serial DAC, 8-Pin DIP

MAX522CPA- Maxim MAX522CPA+, 2-Channel Serial DAC, 8-Pin DIP
Maxim

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
±1LSB
Digital Interface Type:
SPI Serial
Dimensions:
9.91 x 7.87 x 4.45mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Maximum Settling Time:
70µs
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
4.45mm
Width:
7.87mm
Length:
9.91mm
Package Type:
DIP
Architecture:
R-2R
Minimum Operating Temperature:
0 °C
Maximum Operating Temperature:
+70 °C
Resolution:
8 bit
Pin Count:
8
RoHs Compliant
Checking for live stock

This is 2-Channel Serial DAC 8-Pin DIP manufactured by Maxim. The manufacturer part number is MAX522CPA+. The product has external voltage reference. Its integral nonlinearity error is ±1lsb . Additionally, the product has a/an spi serial type digital interface . The given dimensions of the product include 9.91 x 7.87 x 4.45mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. The product has a maximum 70µs setting time . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 4.45mm. Furthermore, the product is 7.87mm wide. Its accurate length is 9.91mm. The package is a sort of dip. The product has been designed as r-2r. Whereas, the minimum operating temperature of the product is 0 °c. It has a maximum operating temperature of +70 °c. Features 8 bit resolution. It contains 8 pins.

pdf icon
MAX522CPA+ - Datasheet(Technical Reference)
