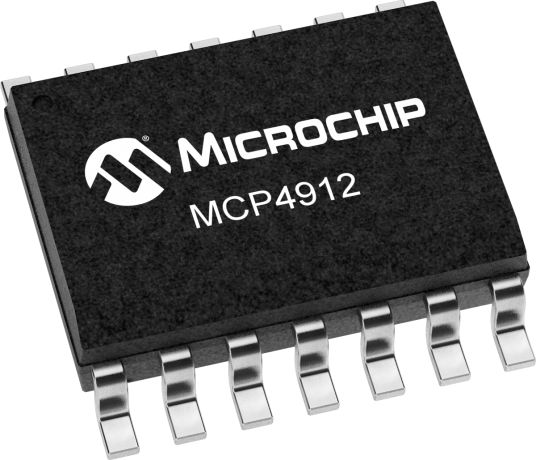

Microchip MCP4912-E/SL, 2-channel 10 bit Serial DAC, 14-Pin TSSOP

MCP4912-E-SL Microchip MCP4912-E/SL, 2-channel 10 bit Serial DAC, 14-Pin TSSOP
Microchip

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
3.5LSB
Digital Interface Type:
Serial (SPI)
Dimensions:
8.65 x 3.9 x 1.25mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
4.5µs
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
1.25mm
Width:
3.9mm
Length:
8.65mm
Full Scale Error:
-1%FSR
Package Type:
TSSOP
Architecture:
Resistor String
Output Polarity:
Unipolar
Maximum Operating Temperature:
+125 °C
Resolution:
10 bit
Pin Count:
14
RoHs Compliant
Checking for live stock

This is 2-channel 10 bit Serial DAC 14-Pin TSSOP manufactured by Microchip. The manufacturer part number is MCP4912-E/SL. The product has external voltage reference. Its integral nonlinearity error is 3.5lsb . Additionally, the product has a/an serial (spi) type digital interface . The given dimensions of the product include 8.65 x 3.9 x 1.25mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5µs setting time . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 1.25mm. Furthermore, the product is 3.9mm wide. Its accurate length is 8.65mm. It has a full scale error of -1%fsr . The package is a sort of tssop. The product has been designed as resistor string. It has unipolar polarity . It has a maximum operating temperature of +125 °c. Features 10 bit resolution. It contains 14 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MCP4912-E/SL on website for other similar products.
We accept all major payment methods for all products including ET14112008. Please check your shopping cart at the time of order.
You can order Microchip brand products with MCP4912-E/SL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose DACs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microchip MCP4912-E/SL, 2-channel 10 bit Serial DAC, 14-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Microchip MCP4912-E/SL, 2-channel 10 bit Serial DAC, 14-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14112008 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14112008.
Yes. We ship MCP4912-E/SL Internationally to many countries around the world.
