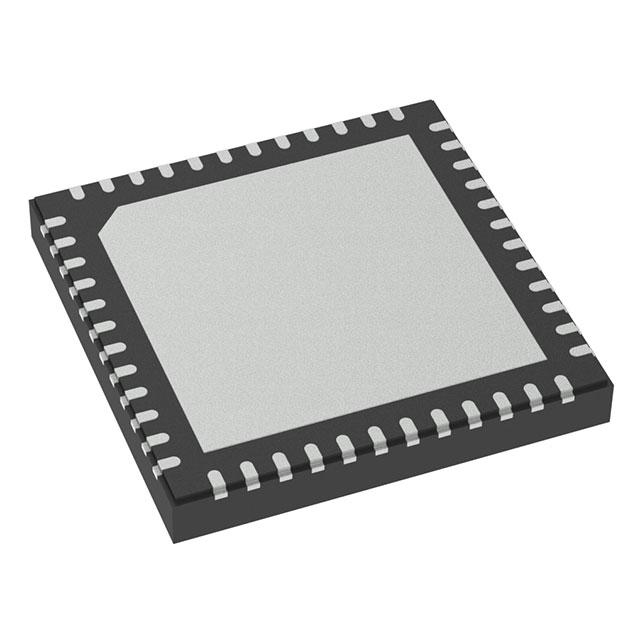

onsemi NCV7547MWTXG
Product Information
Automotive Standard:
AEC-Q100
Product Height:
0.95mm
Dimensions:
7.1 x 7.1 x 0.95mm
Mounting Type:
Surface Mount
Product Length:
7.1mm
Minimum Operating Supply Voltage:
7 V
Height:
0.95mm
Product Width:
7.1mm
Width:
7.1mm
Length:
7.1mm
Package Type:
QFNW
Typical Switching Frequency:
1.1MHz
Minimum Operating Temperature:
-40 °C
Output Configuration:
Half Bridge
Maximum Supply Voltage:
18 V
Maximum Operating Temperature:
+150 °C
Pin Count:
48
Maximum Operating Supply Voltage:
18 V
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
-
Supplier Device Package:
48-QFNW (7x7)
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
48-VFQFN Exposed Pad
REACH Status:
REACH Unaffected
Applications:
General Purpose
Interface:
PWM, SPI
Package:
Tape & Reel (TR)
Load Type:
Capacitive and Resistive
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
AEC-Q100
standardLeadTime:
47 Weeks
Features:
Charge Pump
Mounting Type:
Surface Mount, Wettable Flank
Grade:
Automotive
Series:
-
Voltage - Load:
7V ~ 18V
Fault Protection:
Over Load
Voltage - Supply:
4.5V ~ 5.5V
Current - Peak Output:
-
Rds On (Typ):
-
Output Configuration:
Half Bridge (7)
Technology:
NMOS
Base Product Number:
NCV7547
ECCN:
EAR99
