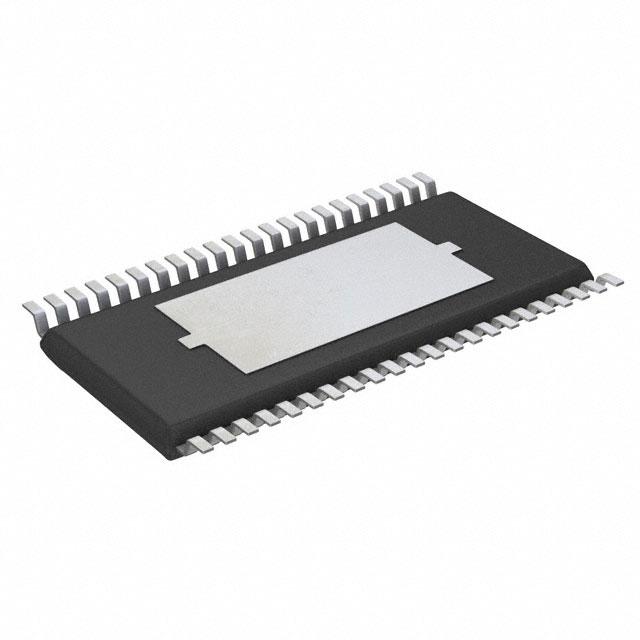

This is Brushed Motor Driver IC 52 V 6A 44-Pin HTSSOP manufactured by Texas Instruments. The manufacturer part number is DRV8412DDW. It has 3.2w inverter power rating . Furthermore, the product is 6.2 mm wide. In addition, the height is 1.05mm. The product complies with automotive standard - no. This high-efficiency motor is a brushed dc motor. It has a minimum 10.8v supply voltage . The package is a sort of htssop. It has a typical 500khz switching frequency . motor driver ic is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. It has a maximum 6a IGBT collector current . Its accurate length is 14.1mm. It contains 44 pins. It has a surface type mount . The product is available in dual configuration. It carries 16a output current. The product drv8412, is a highly preferred choice for users. The product requires a maximum 13.2v supply voltage . Whereas, the minimum operating temperature of the product is -40°c. It features 12ma supply current. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It carries 3a output or channel current. 44-htssop is the supplier device package value. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 44-powertssop (0.244", 6.20mm width). In addition, it is reach unaffected. The product is widely employed in dc motors, stepper motors. A bespoke product is pwm interface. It is shipped in tube package . Load Type Specs- inductive. Its typical moisture sensitivity level is 3 (168 hours). It has a long 6 weeks standard lead time. The splendid features of the product include status flag. The product is available in surface mount configuration. The given load voltage is 0v ~ 52.5v. Fault protection features include current limiting, over temperature, short circuit, uvlo. It has optimum voltage supply of 10.8v ~ 13.2v. It carries 6a peak current output. The typical Rds On of the product is 110mohm ls, 110mohm hs. It boasts half bridge (4) output configuration. This product use power mosfet technology. Moreover, it corresponds to drv8412, a base product number of the product. The product is designated with the ear99 code number.
For more information please check the datasheets.
