Current Rating:
1A
Termination Type:
ZIF Vertical Contact
Mounting Type:
Surface Mount
Voltage Rating:
100 V ac/dc
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Housing Material:
Thermoplastic
Number of Rows:
1
Contact Plating:
Tin over Nickel
Pitch:
1mm
Number of Contacts:
4
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-55°C
Contact Material:
Phosphor Bronze
Manufacturer Standard Lead Time:
9 Weeks
Detailed Description:

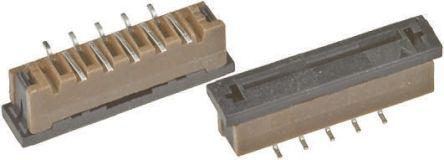

4 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount
Current Rating:
1A
Housing Material:
Thermoplastic, Glass Filled
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.209" (5.30mm)
Actuator Color:
Black
Number of Positions:
4
Locking Feature:
Slide Lock
Flat Flex Type:
FFC, FPC
Housing Color:
Brown
Standard Package:
500
Manufacturer:
Amphenol FCI
Voltage Rating:
100V
Material Flammability Rating:
UL94 V-0
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Connector/Contact Type:
Contacts, Vertical, 1 Sided
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount
Series:
SFW
FFC, FCB Thickness:
0.30mm, 0.33mm
Packaging:
Tape & Reel (TR)
Pitch:
0.039" (1.00mm)
Actuator Material:
Thermoplastic, Glass Filled
Cable End Type:
Straight, Tapered
Contact Material:
Phosphor Bronze
