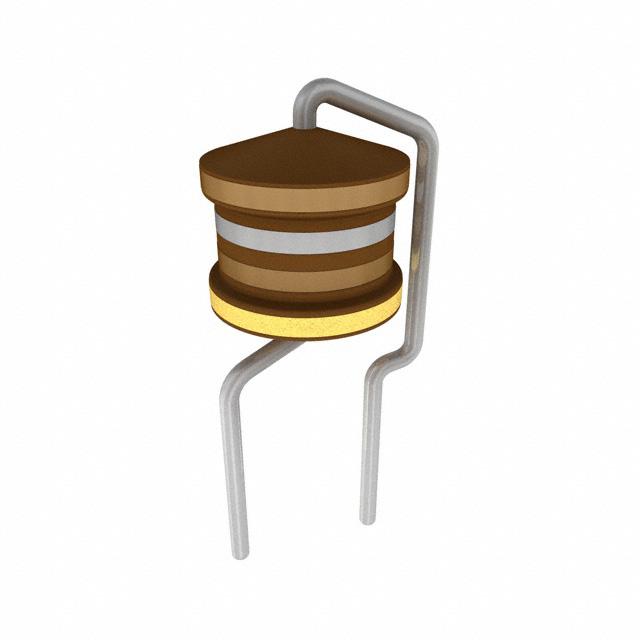

EPCOS - TDK Electronics B82144B2184J000

B82144B2184J000 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-55°C ~ 125°C
Package / Case:
Radial, Vertical Cylinder
Tolerance:
±5%
Shielding:
Unshielded
DC Resistance (DCR):
785mOhm Max
Height - Seated (Max):
0.551" (14.00mm)
title:
B82144B2184J000
Type:
Drum Core, Wirewound
REACH Status:
REACH Affected
edacadModel:
B82144B2184J000 Models
Inductance:
180 µH
edacadModelUrl:
/en/models/5209337
Size / Dimension:
0.256" Dia (6.50mm)
Current - Saturation (Isat):
720mA
standardLeadTime:
9 Weeks
Material - Core:
Ferrite
Current Rating (Amps):
950 mA
Moisture Sensitivity Level (MSL):
Not Applicable
Frequency - Self Resonant:
4MHz
Mounting Type:
Through Hole
Series:
LBC
Supplier Device Package:
-
Packaging:
Tape & Reel (TR)
Q @ Freq:
40 @ 79.6kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B82144B2184J000. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 100 khz is its inductance frequency value. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in radial, vertical cylinder. It features ±5% of tolerance value. Furthermore, the product is shielded with unshielded. It allows DC resistance of 785mohm max. It has the maximum seated height of 0.551" (14.00mm). It comes in drum core, wirewound configuration. In addition, it is reach affected. The product has a 180 µh inductance value. The product's diameters include 0.256" dia (6.50mm). It has a 720ma saturation current. It has a long 9 weeks standard lead time. It is made from durable ferrite. Additionally, the product's output is 950 ma. Its typical moisture sensitivity level is not applicable. 4mhz is the self-resonant frequency of the product. The product is available in through hole configuration. The product lbc, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a typical frequency of 40 @ 79.6khz. The product is designated with the ear99 code number.
