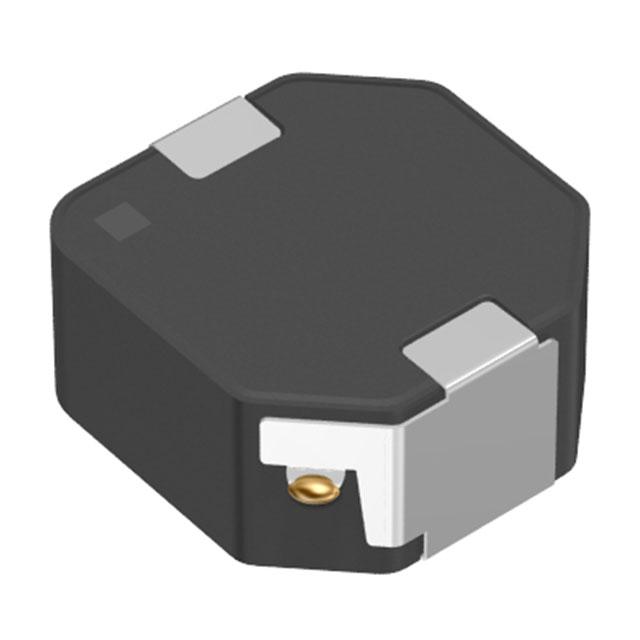

TDK Corporation SPM12565VT-3R3M-D
Product Information
Ratings:
AEC-Q200
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-55°C ~ 155°C
Package / Case:
Nonstandard
Tolerance:
±20%
Shielding:
Shielded
DC Resistance (DCR):
4.9mOhm
Height - Seated (Max):
0.256" (6.50mm)
Type:
Drum Core, Wirewound
REACH Status:
REACH Unaffected
edacadModel:
SPM12565VT-3R3M-D Models
Inductance:
3.3 µH
edacadModelUrl:
/en/models/12175285
Package:
Tape & Reel (TR)
Size / Dimension:
0.512" L x 0.492" W (13.00mm x 12.50mm)
Current - Saturation (Isat):
25.5A
standardLeadTime:
40 Weeks
Material - Core:
Metal Composite
Current Rating (Amps):
16.8 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Features:
-
Mounting Type:
Surface Mount
Series:
SPM-VT-D
Supplier Device Package:
1256
Q @ Freq:
-
Base Product Number:
SPM12565V
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SPM12565VT-3R3M-D on website for other similar products.
We accept all major payment methods for all products including ET20114188. Please check your shopping cart at the time of order.
You can order TDK Corporation brand products with SPM12565VT-3R3M-D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Fixed Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TDK Corporation SPM12565VT-3R3M-D. You can also check on our website or by contacting our customer support team for further order details on TDK Corporation SPM12565VT-3R3M-D.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20114188 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TDK Corporation" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20114188.
Yes. We ship SPM12565VT-3R3M-D Internationally to many countries around the world.
This is manufactured by TDK Corporation. The manufacturer part number is SPM12565VT-3R3M-D. It is rated with aec-q200. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. 100 khz is its inductance frequency value. The product has -55°c ~ 155°c operating temperature range. Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 4.9mohm. It has the maximum seated height of 0.256" (6.50mm). It comes in drum core, wirewound configuration. In addition, it is reach unaffected. The product has a 3.3 µh inductance value. It is shipped in tape & reel (tr) package . The product's diameters include 0.512" l x 0.492" w (13.00mm x 12.50mm). It has a 25.5a saturation current. It has a long 40 weeks standard lead time. It is made from durable metal composite. Additionally, the product's output is 16.8 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product spm-vt-d, is a highly preferred choice for users. 1256 is the supplier device package value. Moreover, it corresponds to spm12565v, a base product number of the product. The product is designated with the ear99 code number.
