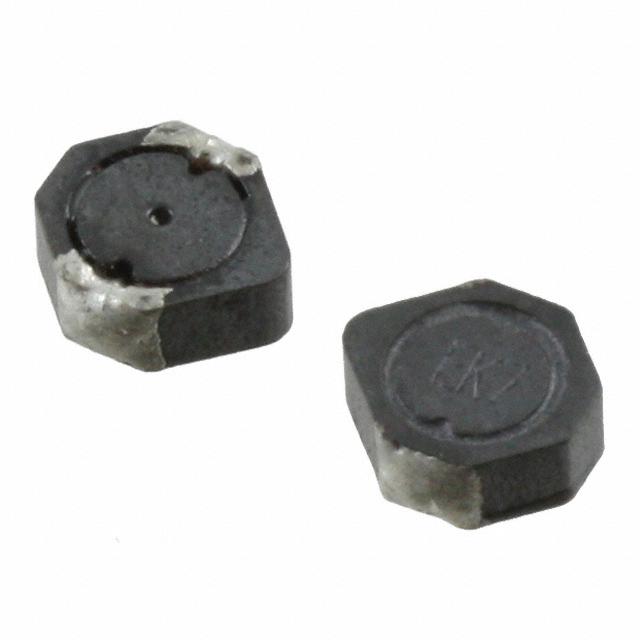

Eaton - Electronics Division SD3114-4R7-R
Product Information
Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
RoHS Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-40°C ~ 125°C
Package / Case:
Nonstandard
Tolerance:
±30%
Shielding:
Shielded
DC Resistance (DCR):
251mOhm
Height - Seated (Max):
0.055" (1.40mm)
Type:
Drum Core, Wirewound
edacadModel:
SD3114-4R7-R Models
Inductance:
4.7 µH
edacadModelUrl:
/en/models/1145043
Package:
Tape & Reel (TR)
Size / Dimension:
0.122" L x 0.122" W (3.10mm x 3.10mm)
Current - Saturation (Isat):
1.14A
standardLeadTime:
13 Weeks
Material - Core:
Ferrite
Current Rating (Amps):
770 mA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Mounting Type:
Surface Mount
Series:
SD3114
Supplier Device Package:
-
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SD3114-4R7-R on website for other similar products.
We accept all major payment methods for all products including ET17530057. Please check your shopping cart at the time of order.
You can order Eaton - Electronics Division brand products with SD3114-4R7-R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Fixed Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Eaton - Electronics Division SD3114-4R7-R. You can also check on our website or by contacting our customer support team for further order details on Eaton - Electronics Division SD3114-4R7-R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17530057 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Eaton - Electronics Division" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17530057.
Yes. We ship SD3114-4R7-R Internationally to many countries around the world.
This is manufactured by Eaton - Electronics Division. The manufacturer part number is SD3114-4R7-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs compliant. 100 khz is its inductance frequency value. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in nonstandard. It features ±30% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 251mohm. It has the maximum seated height of 0.055" (1.40mm). It comes in drum core, wirewound configuration. The product has a 4.7 µh inductance value. It is shipped in tape & reel (tr) package . The product's diameters include 0.122" l x 0.122" w (3.10mm x 3.10mm). It has a 1.14a saturation current. It has a long 13 weeks standard lead time. It is made from durable ferrite. Additionally, the product's output is 770 ma. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product sd3114, is a highly preferred choice for users. The product is designated with the ear99 code number.
