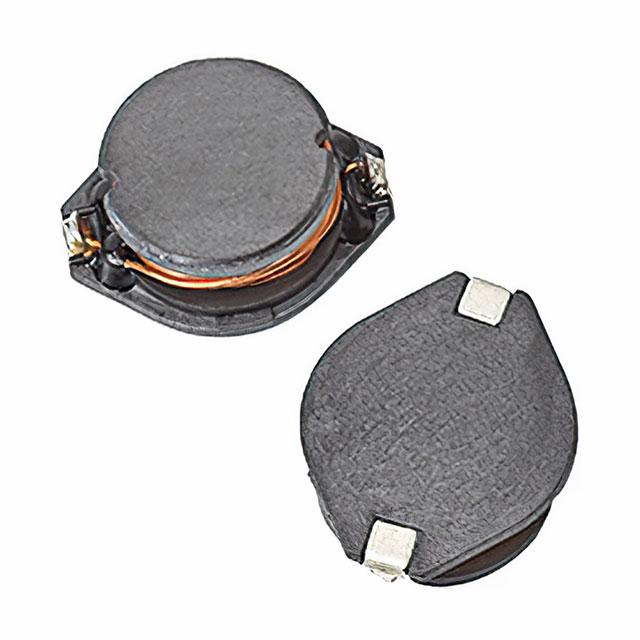

Eaton - Electronics Division UP5S-220-R
Product Information
Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Inductance Frequency - Test:
100 kHz
Operating Temperature:
-25°C ~ 85°C
Package / Case:
Nonstandard
Tolerance:
±20%
Shielding:
Shielded
DC Resistance (DCR):
45mOhm Max
Height - Seated (Max):
0.295" (7.50mm)
Type:
Wirewound
Inductance:
22 µH
Package:
Tape & Reel (TR)
Size / Dimension:
0.724" L x 0.591" W (18.40mm x 15.00mm)
Current - Saturation (Isat):
5.05A
standardLeadTime:
11 Weeks
Material - Core:
-
Current Rating (Amps):
3.15 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
15MHz
Mounting Type:
Surface Mount
Series:
UNI-PAC™ 5S
Supplier Device Package:
-
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UP5S-220-R on website for other similar products.
We accept all major payment methods for all products including ET17229351. Please check your shopping cart at the time of order.
You can order Eaton - Electronics Division brand products with UP5S-220-R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Fixed Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Eaton - Electronics Division UP5S-220-R. You can also check on our website or by contacting our customer support team for further order details on Eaton - Electronics Division UP5S-220-R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17229351 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Eaton - Electronics Division" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17229351.
Yes. We ship UP5S-220-R Internationally to many countries around the world.
This is manufactured by Eaton - Electronics Division. The manufacturer part number is UP5S-220-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. 100 khz is its inductance frequency value. The product has -25°c ~ 85°c operating temperature range. Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Furthermore, the product is shielded with shielded. It allows DC resistance of 45mohm max. It has the maximum seated height of 0.295" (7.50mm). It comes in wirewound configuration. The product has a 22 µh inductance value. It is shipped in tape & reel (tr) package . The product's diameters include 0.724" l x 0.591" w (18.40mm x 15.00mm). It has a 5.05a saturation current. It has a long 11 weeks standard lead time. Additionally, the product's output is 3.15 a. Its typical moisture sensitivity level is 1 (unlimited). 15mhz is the self-resonant frequency of the product. The product is available in surface mount configuration. The product uni-pac™ 5s, is a highly preferred choice for users. The product is designated with the ear99 code number.
