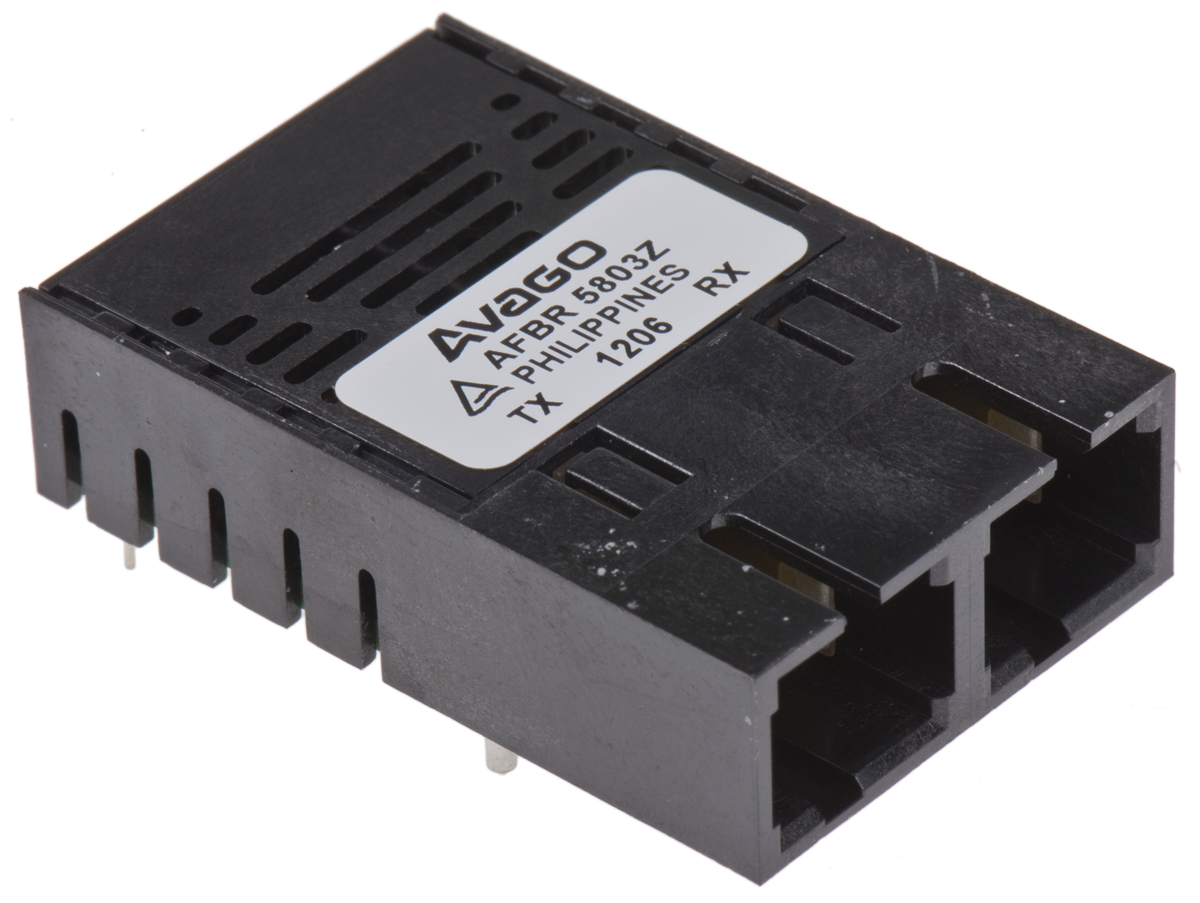

Broadcom AFBR-5803Z Fibre Optic Transceiver, SC Connector, 100Mbit/s, 1380nm 9-Pin

Enrgtech Part No: ET14054211
|
Manufacturer Part No:
AFBR-5803Z
|
Manufacturer: Broadcom

AFBR-5803Z Broadcom Fibre Optic Transceiver, SC Connector, 100Mbit/s, 1380nm 9-Pin

Product Information

Dimensions:

25.4 x 12 x 24.8mm

Mounting Type:

Through Hole

Series:

AFBR-5800Z

Connector Type:

Height:

24.8mm

Peak Transmitter Wavelength:

1380nm

Width:

12mm

Length:

25.4mm

Number of Pins:

Connector Shape:

Round

Receiver Jitter at Maximum Data Rate:

2.14ns

Transmitter Jitter at Maximum Data Rate:

0.69ns

Checking for live stock

The Broadcom AFBR-5803Z is a premium 1300-nm fibre-optic transceiver optimised for high-speed data transmission over multimode fibre. Built in a compact 1x9 package with a duplex SC connector, it provides seamless 100 Mbps performance for Fast Ethernet, FDDI, and ATM applications. This industry-standard module combines an InGaAsP LED transmitter with a PIN/preamplifier receiver, providing high electromagnetic immunity and exceptional signal integrity over distances up to 2 kilometers, making it ideal for critical network backbones.

Reasons You Should Use the Product

The Broadcom AFBR-5803Z fibre optic transceiver offers exceptional reliability with a low-cost LED-based design that guarantees consistent 100MBd performance over extended lifetimes. Its internal shielding provides superior EMI resistance, ensuring clean data transmission in electrically noisy industrial environments.

Seamless compatibility with Fast Ethernet and FDDI standards.
Rugged 1x9 package style for high-density board layouts.
Dual voltage support for versatile 3.3V or 5V power systems.

Core Performance Features & Key Uses

Key Performance Highlights:

Wide Wavelength: Operating at a nominal 1300nm for optimised multimode fibre efficiency.
Extended Reach: Supports reliable data links over distances up to 2km.
EMI Immunity: Integrated internal shields minimise emissions and external interference.
RoHS Compliant: Eco-friendly design meeting global environmental standards for industrial electronics.

Key Uses:

Multimode fibre backbone links for local area networks.
Industrial Fast Ethernet media converters.
High-speed ATM and FDDI networking equipment.
Computer-to-peripheral fibre optic extensions in sensitive environments.

FDDI, 100 Mb/s ATM, and Fast Ethernet Transceivers in Low Cost 1 x 9 Package Style Data Sheet(Technical Reference)
