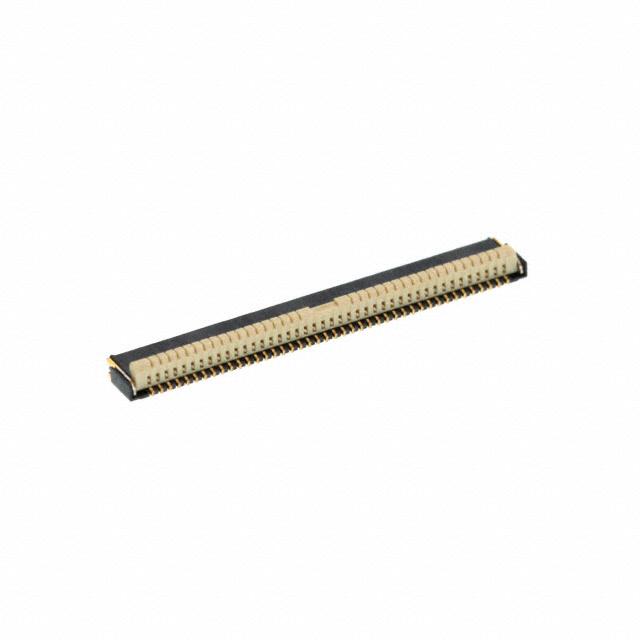

Panasonic Electric Works AYF534235A
Product Information
The AYF534235A is a highly reliable 42-position FFC, FPC connector contact designed by Panasonic Electric Works for efficient electrical connections in countless applications. The connector ensures constant electrical performance, making it an essential component for diverse electrical systems.
HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.039" (1.00mm)
Actuator Color:
-
Contact Finish Thickness:
Flash
Number of Positions:
42
Locking Feature:
Flip Lock, Backlock
Voltage Rating:
50V
Flat Flex Type:
FFC, FPC
Housing Color:
-
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A per Contact
Connector/Contact Type:
Contacts, Top and Bottom
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Y5B
FFC, FCB Thickness:
0.30mm
Pitch:
0.020" (0.50mm)
Contact Material:
Copper Alloy
Actuator Material:
Liquid Crystal Polymer (LCP)
Cable End Type:
Tapered
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AYF534235A on website for other similar products.
We accept all major payment methods for all products including ET20314605. Please check your shopping cart at the time of order.
You can order Panasonic Electric Works brand products with AYF534235A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electric Works AYF534235A. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electric Works AYF534235A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20314605 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electric Works" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20314605.
Yes. We ship AYF534235A Internationally to many countries around the world.
Panasonic Electric Works is a renowned manufacturer of electronic components, and one of their notable products is the AYF534235A 42 Position FFC (Flexible Flat Cable) and FPC (Flexible Printed Circuit) Connector Contacts. This connector offers a reliable and efficient solution for connecting FFC/FPC cables in various electronic applications. With its surface mount design, right-angle contacts, and secure connection features, this connector ensures high performance, durability, and ease of assembly. Its versatility makes it suitable for various applications, making it a popular choice among electronic manufacturers and designers.
The AYF534235A connector features a top and bottom 0.020" (0.50mm) surface mount design, making it suitable for surface mount technology (SMT) assembly processes. It is designed with right-angle contacts, allowing easy and space-saving cable connections in tight spaces. The connector provides 42 positions, offering ample connectivity options for FFC/FPC cables.
The connector contacts of the AYF534235A are crafted with precision and high-quality materials to ensure optimal performance and long-lasting durability. The connections are engineered to provide reliable electrical conductivity, minimising signal loss and maintaining signal integrity during data transmission. This makes the connector suitable for high-speed applications like data communication and multimedia devices.
The AYF534235A connector is designed for easy assembly, simplifying the production process for electronic manufacturers. Its user-friendly design allows quick and secure cable insertion and removal. The connector also incorporates a locking mechanism, ensuring a secure connection between the FFC/FPC cable and the connector. This prevents accidental disconnection due to vibration or movement.
The Panasonic Electric Works AYF534235A: Wide Application Range
The AYF534235A connector is versatile and finds applications in various industries and electronic devices. It is generally utilised in consumer electronics, such as smartphones, tablets, and digital cameras, where space-saving and reliable connectivity are crucial. It is employed in automotive applications, industrial equipment, and medical devices, where robust performance and durability are essential requirements.
