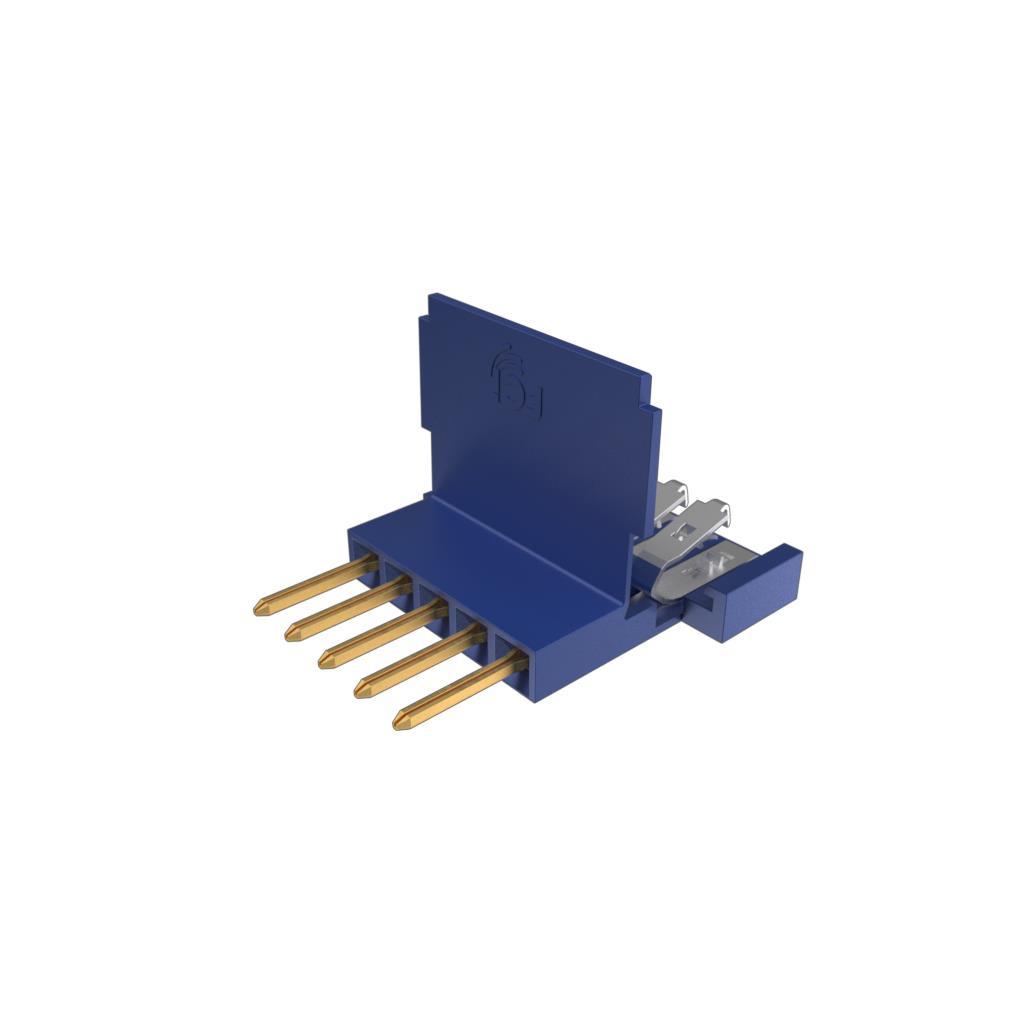

Amphenol ICC (FCI) 66226-037LF

66226-037LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Housing Material:
Thermoplastic
Operating Temperature:
-65°C ~ 105°C
Height Above Board:
-
Actuator Color:
Natural
Contact Finish Thickness:
30.0µin (0.76µm)
standardLeadTime:
7 Weeks
Locking Feature:
Flip Lock
REACH Status:
REACH Unaffected
Number of Positions:
5
edacadModel:
66226-037LF Models
Flat Flex Type:
FFC
Housing Color:
Blue
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1490010
Manufacturer:
Amphenol ICC (FCI)
Voltage Rating:
500V
Contact Finish:
Gold or Gold, GXT™
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
100
Current Rating (Amps):
2A
Connector/Contact Type:
Header
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Free Hanging (In-Line)
Series:
Clincher™
FFC, FCB Thickness:
0.20mm
Packaging:
Tray
Base Product Number:
66226
Pitch:
0.100" (2.54mm)
Contact Material:
Copper Nickel Alloy
Actuator Material:
-
Cable End Type:
Notched
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 66226-037LF. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs compliant. The product also features robust thermoplastic housing material. The product has -65°c ~ 105°c operating temperature range. The actuator has a classic natural colour. It has 30.0µin (0.76µm) of contact finishing thickness. It has a long 7 weeks standard lead time. The product has a locking feature of flip lock. In addition, it is reach unaffected. The product carries possible position value of 5. It is a flat flex ffc type. It has an integral blue housing colour. It carries ul94 v-0 of material flammability rating. The amphenol icc (fci)'s product offers user-desired applications. Moreover, the product has a nominal 500v voltage rating. Furthermore, the product is galvanized with excellent gold or gold, gxt™ contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 100. Additionally, the product's output is 2a. It has built-in connector or contact of header. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in free hanging (in-line) configuration. The product clincher™, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.20mm. In addition, tray is the available packaging type of the product. Moreover, it corresponds to 66226, a base product number of the product. Moreover, the product is 0.100" (2.54mm). The product is made from sturdy copper nickel alloy materials. The cable end is a type of notched end. The product is designated with the ear99 code number.

pdf icon
Clincher Plating 07/Dec/2011(PCN Design/Specification)
pdf icon
Gold/GXT Plating 23/Mar/2007(PCN Design/Specification)
pdf icon
flexconnectors_254mm_clincher Datasheet(Datasheets)
pdf icon
Tray slots 02/Sept/2011(PCN Packaging)
pdf icon
clincher 2 54mm productpresentation Other Related Document(Other Related Documents)
pdf icon
fci basics ffc fpc productpresentation Other Related Document(Other Related Documents)
pdf icon
65801-050LF(Other Related Documents)
