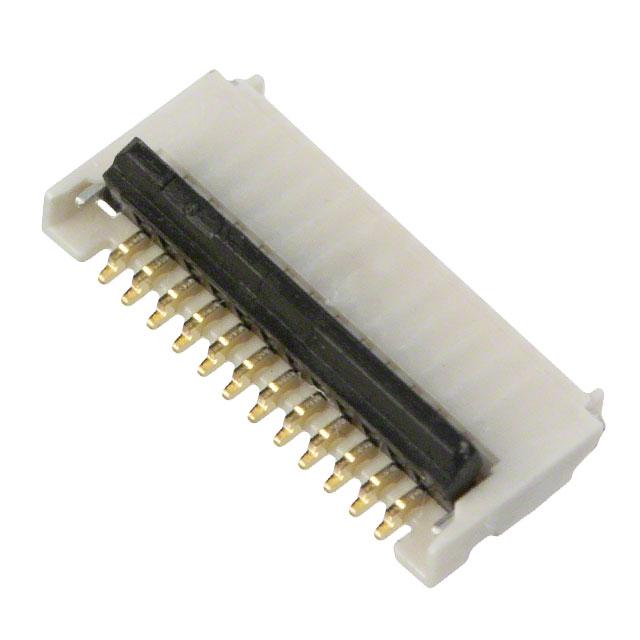

Molex 5034801200
Product Information
Number of Contacts:
12
Mounting Type:
Surface Mount
Gender:
Female
Pitch:
0.5mm
Termination Type:
Top and Bottom Contact
Series:
FBH1
Contact Material:
Phosphor Bronze
Series Number:
503480
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.039" (1.00mm)
Actuator Color:
Black
Contact Finish Thickness:
3.94µin (0.10µm)
standardLeadTime:
18 Weeks
Locking Feature:
Flip Lock, Backlock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Number of Positions:
12
edacadModel:
5034801200 Models
Flat Flex Type:
FFC, FPC
Housing Color:
White
Material Flammability Rating:
UL94 V-0, UL94 HB
edacadModelUrl:
/en/models/2356625
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
10
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Top and Bottom
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
BackFlip, Easy-On 503480 FHB1
FFC, FCB Thickness:
0.30mm
Base Product Number:
503480
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Cable End Type:
Straight, Tapered
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5034801200 on website for other similar products.
We accept all major payment methods for all products including ET17502318. Please check your shopping cart at the time of order.
You can order Molex brand products with 5034801200 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 5034801200. You can also check on our website or by contacting our customer support team for further order details on Molex 5034801200.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17502318 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17502318.
Yes. We ship 5034801200 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 5034801200. The product contains 12 contacts. The product is available in surface mount configuration. In addition, female is the available "Gender" of the product. Moreover, the product is 0.5mm. The product is designed with a top and bottom contact termination. The product fbh1, is a highly preferred choice for users. The product is made from sturdy phosphor bronze materials. It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.039" (1.00mm) high above board. The actuator has a classic black colour. It has 3.94µin (0.10µm) of contact finishing thickness. It has a long 18 weeks standard lead time. The product has a locking feature of flip lock, backlock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. The product carries possible position value of 12. It is a flat flex ffc, fpc type. It has an integral white housing colour. It carries ul94 v-0, ul94 hb of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 10. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, top and bottom. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product backflip, easy-on 503480 fhb1, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to 503480, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. The cable end is a type of straight, tapered end. The product is designated with the ear99 code number.
