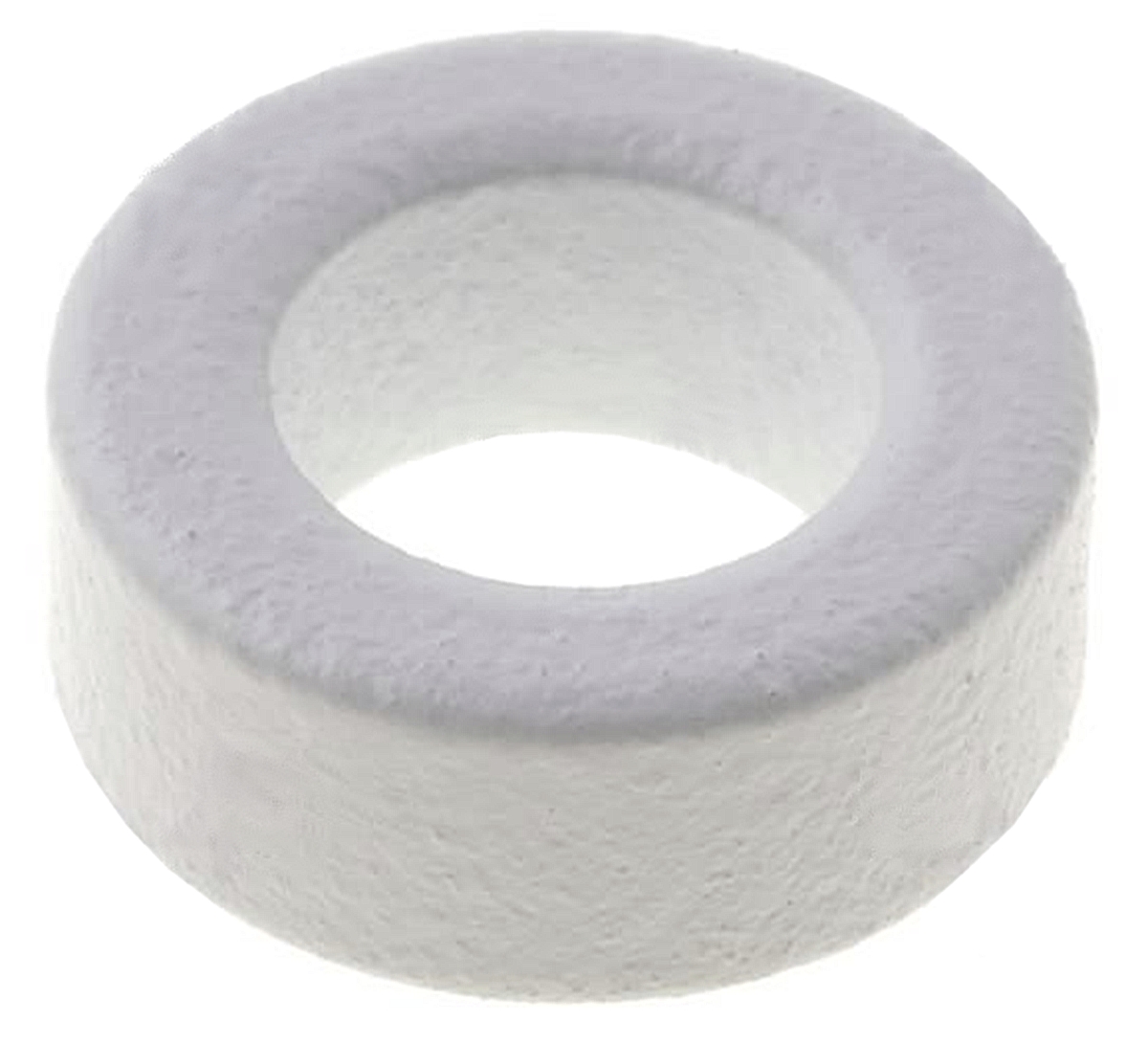

FERROXCUBE Ferrite Ring Ring Core, For: Interference Suppression Coil, Pulse and Wide Band Transformers
Product Information
Diameter:
63.4mm
Dimensions:
63.4 x 37.7 x 25.3mm
Outer Diameter:
63.4mm
Material:
3E12 Material
Height:
25.3mm
Application:
Interference Suppression Coil, Pulse and Wide Band Transformers
Inner Diameter:
37.7mm
Type:
Ring Core
RoHS Status:
ROHS3 Compliant
Width:
-
Tolerance:
-
Finish:
Epoxy
Effective Length (le) mm:
152
Effective Magnetic Volume (Ve) mm³:
46500
Material:
3E12
Gap:
Ungapped
Core Type:
Toroid
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
12 Weeks
Diameter:
2.496" (63.40mm)
Core Factor (ΣI/A) mm⁻¹:
0.497
Series:
-
Effective Area (Ae) mm²:
306
Supplier Device Package:
TX 63 x 38 x 25
Height:
0.996" (25.30mm)
Checking for live stock
FAQs
Yes. You can also search TX63/38/25-3E12 on website for other similar products.
We accept all major payment methods for all products including ET13878001. Please check your shopping cart at the time of order.
You can order FERROXCUBE brand products with TX63/38/25-3E12 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Rings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of FERROXCUBE Ferrite Ring Ring Core, For: Interference Suppression Coil, Pulse and Wide Band Transformers. You can also check on our website or by contacting our customer support team for further order details on FERROXCUBE Ferrite Ring Ring Core, For: Interference Suppression Coil, Pulse and Wide Band Transformers.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13878001 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "FERROXCUBE" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13878001.
Yes. We ship TX63/38/25-3E12 Internationally to many countries around the world.
This is Ferrite Ring Ring Core For: Interference Suppression Coil Pulse and Wide Band Transformers manufactured by FERROXCUBE. The manufacturer part number is TX63/38/25-3E12. Its diameter is 63.4mm. The given dimensions of the product include 63.4 x 37.7 x 25.3mm. Its outer diameter is 63.4mm. The product is made from highly stable and reliable 3e12 material. In addition, the height is 25.3mm. Applications Information involves interference suppression coil, pulse and wide band transformers. The inner diameter of the product is 37.7mm. It comes in ring core configuration. The product is rohs3 compliant. A quality product with a nice epoxy finish. A 152 of effective length. It features 46500 effective magnetic volume. The product is made from highly stable and reliable 3e12. Gap Options: ungapped. Robust product with a toroid core. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. It has a long 12 weeks standard lead time. Its diameter is 2.496" (63.40mm). Features 306 effective area. tx 63 x 38 x 25 is the supplier device package value. In addition, the height is 0.996" (25.30mm).
