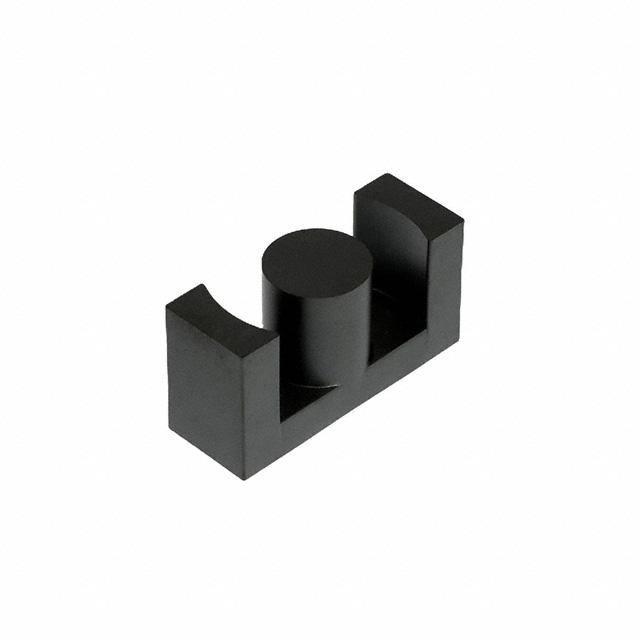

EPCOS - TDK Electronics B66397G0200X187

B66397G0200X187 EPCOS - TDK Electronics
B66397G0200X187
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2200
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
0.870" (22.10mm)
Tolerance:
-
Minimum Core Cross Section (Amin) mm²:
368
Finish:
Uncoated
Effective Length (le) mm:
139
Effective Magnetic Volume (Ve) mm³:
51200
Material:
N87
REACH Status:
REACH Unaffected
Gap:
Gapped
edacadModel:
B66397G0200X187 Models
edacadModelUrl:
/en/models/3914898
Core Type:
ETD
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
2.354" (59.80mm)
standardLeadTime:
17 Weeks
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
0.38
Series:
ETD59/31/22
Effective Area (Ae) mm²:
368
Supplier Device Package:
ETD 59 x 31 x 22
Height:
1.228" (31.20mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B66397G0200X187. The product features 2200 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 0.870" (22.10mm) wide. Its minimum core cross-section is 368. A quality product with a nice uncoated finish. A 139 of effective length. It features 51200 effective magnetic volume. The product is made from highly stable and reliable n87. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a etd core. It is shipped in box package . Its typical moisture sensitivity level is not applicable. Its accurate length is 2.354" (59.80mm). It has a long 17 weeks standard lead time. The product etd59/31/22, is a highly preferred choice for users. Features 368 effective area. etd 59 x 31 x 22 is the supplier device package value. In addition, the height is 1.228" (31.20mm). The product is designated with the ear99 code number.
