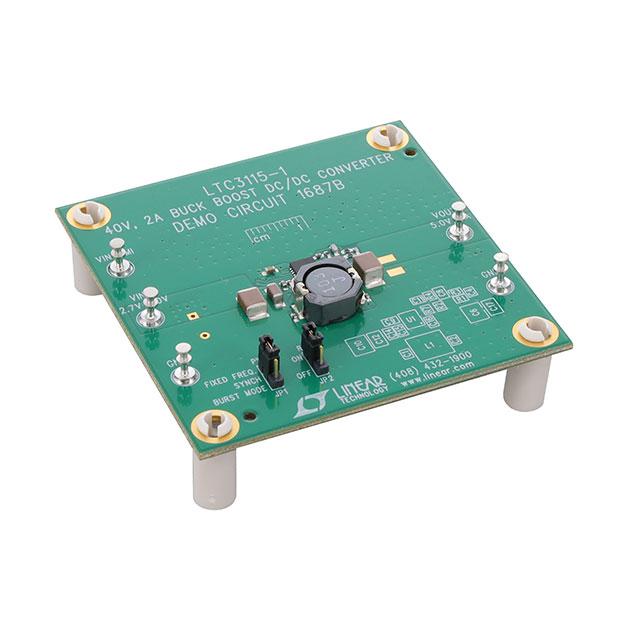

Analog Devices Inc. DC1687B

DC1687B Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Up or Down
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Voltage - Input:
2.7V ~ 40V
Frequency - Switching:
1MHz
REACH Status:
REACH Unaffected
Current - Output:
2A
Manufacturer:
Analog Devices Inc.
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Regulator Topology:
Buck-Boost
Utilized IC / Part:
LTC3115-1
Series:
-
Voltage - Output:
5V
Packaging:
Box
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC1687
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1687B. Basic Purpose: dc/dc, step up or down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 2.7v ~ 40v. The switching frequency of the standard product is 1mhz. In addition, it is reach unaffected. While, the output current includes 2a. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers buck-boost regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 5v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc1687, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
DC1687B Schematic(Design Resources)
pdf icon
LTC3115-1 Datasheet(Datasheets)
pdf icon
DC1687B Demo Manual(Datasheets)
