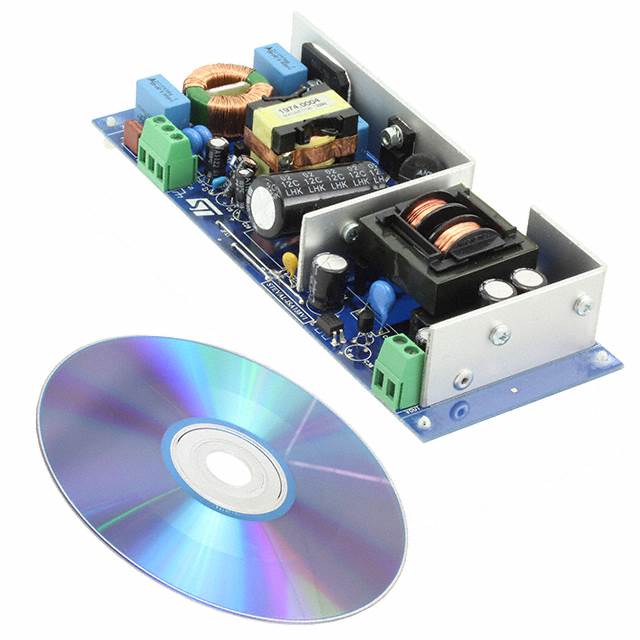

STEVAL-ISA138V1, STMicroelectronics

STEVAL-ISA138V1 STMicroelectronics

Product Information

For Use With:
Portable Computer Power Adapter
Featured Device:
L6563H, L6699
Kit Classification:
Evaluation Board
Kit Name:
Evaluation Board
Main Purpose:
DC/DC, Step Down
RoHS Status:
ROHS3 Compliant
Voltage - Input:
90 ~ 264 VAC
Frequency - Switching:
REACH Status:
REACH Unaffected
Current - Output:
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
51 Weeks
Regulator Topology:
Utilized IC / Part:
L6563H, L6699
Voltage - Output:
Supplied Contents:
Power - Output:
90 W
Base Product Number:
Outputs and Type:
1, Isolated
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STEVAL-ISA138V1. The product is highly suitable for portable computer power adapter. Featured Device l6563h, l6699. The kit is classified as evaluation board. This kit is known as evaluation board, consists of highly versatile and user-desired tools. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 90 ~ 264 vac. In addition, it is reach unaffected. While, the output current includes 4.75a. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 51 weeks standard lead time. The product offers flyback regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 19v. The product is designated with the ear99 code number. The product is also supplied with contents, such as board(s). The product has an output power 90 w. Moreover, it corresponds to steval, a base product number of the product. The output and type include 1, isolated.
