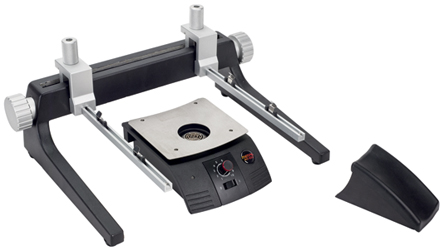

The Metcal PCT-102-21 is a combined PCB preheater and holder designed to facilitate efficient soldering and rework processes in the electronics industry. This versatile tool is known for its precision temperature control, ergonomic design, and compatibility with a wide range of printed circuit boards (PCBs).

• PCB Preheating for Soldering and Rework

One of the primary functions of the PCT-102-21 is to preheat PCBs before soldering or rework operations. Preheating helps prevent thermal shock to the components and PCB, improving solder joint quality and minimising the risk of damage during the soldering process.

Distinctive Features and Benefits of the PCB Preheater

• This preheater features precise temperature control, allowing users to set and maintain specific temperatures for the PCB surface.
• Temperature control is essential for preventing overheating and ensuring consistent soldering results.
• The PCT-102-21 is designed to provide even heat distribution across the PCB surface.
• The tool has an adjustable PCB holder, which securely holds the PCB in place during soldering or rework.
• The holder can accommodate various PCB sizes and shapes, offering flexibility in handling different projects.
• The PCT-102-21 is ergonomically designed for ease of use.
• By preheating the PCB, the tool accelerates the soldering process.
• It helps the solder flow more effectively, reducing the time required for soldering and rework tasks and leading to increased productivity.

Typical Applications of the Metcal PCT-102-21, PCB Preheater and PCB Holder

The Metcal PCT-102-21’s versatility makes it a versatile asset in various electronics manufacturing and repair applications, including:

• SMT (Surface Mount Technology) Assembly: Used for soldering SMT components onto PCBs with precision and reliability.
• Thru-Hole Component Rework: Facilitates removing and replacing thru-hole components on PCBs.
• BGA (Ball Grid Array) Soldering: Ensures consistent and reliable soldering of BGA packages, generally utilised in modern electronics.
• PCB Repair: Ideal for repairing damaged or faulty PCBs by reworking solder joints and components.
• Prototype Development: Supports the assembly and modification of PCB prototypes.

For more information please check the datasheets.
