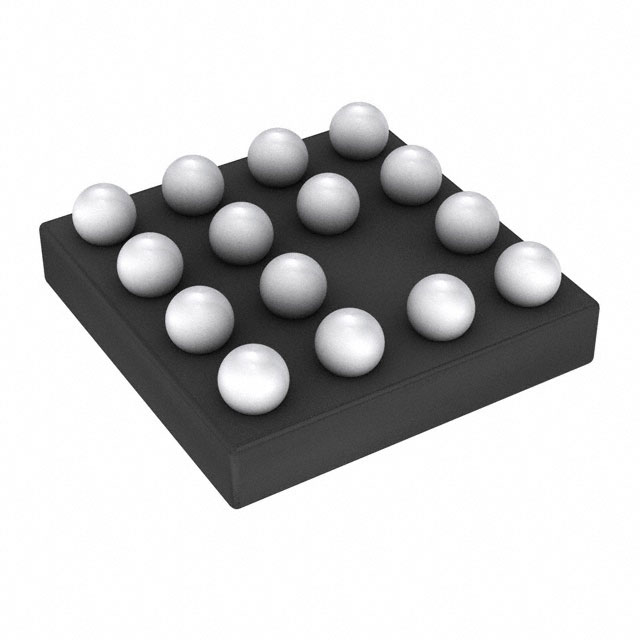

STMicroelectronics EMIF06-USD14F3
Product Information
Maximum Reverse Stand-off Voltage:
3V
Minimum Breakdown Voltage:
14V
Mounting Type:
Surface Mount
Capacitance:
12pF
Maximum Reverse Leakage Current:
100nA
ESD Protection:
Yes
Width:
1.54mm
Length:
1.54mm
Package Type:
Flip-Chip
Minimum Operating Temperature:
-30 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
15
Test Current:
1mA
Center / Cutoff Frequency:
-
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Attenuation Value:
-
Package / Case:
15-UFBGA, FCBGA
Type:
Low Pass
Voltage - Rated:
-
ESD Protection:
Yes
REACH Status:
REACH Unaffected
Applications:
Data Lines for Mobile Devices
Number of Channels:
6
Resistance - Channel (Ohms):
40
Package:
Tape & Reel (TR)
Size / Dimension:
0.061" L x 0.061" W (1.54mm x 1.54mm)
Values:
R = 40Ohms, C = 7.5pF
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
IPAD™
Operating Temperature:
-30°C ~ 85°C
Height:
0.217" (5.50mm)
Filter Order:
2nd
Technology:
RC (Pi)
Base Product Number:
EMIF06
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EMIF06-USD14F3 on website for other similar products.
We accept all major payment methods for all products including ET11827127. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with EMIF06-USD14F3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in EMI/RFI Filters (LC, RC Networks) category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics EMIF06-USD14F3. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics EMIF06-USD14F3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11827127 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11827127.
Yes. We ship EMIF06-USD14F3 Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is EMIF06-USD14F3. While the maximised reverse stand-off voltage includes 3v. It harbours a 14v of minimum breakdown voltage. The product is available in surface mount configuration. It provides a 12pf of capacitance value. The product has a maximum 100na of reverse leakage current. ESD Protected - yes. Furthermore, the product is 1.54mm wide. Its accurate length is 1.54mm. The package is a sort of flip-chip. Whereas, the minimum operating temperature of the product is -30 °c. It has a maximum operating temperature of +85 °c. It contains 15 pins. In addition, it has 1ma test current. It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. Moreover, the product comes in 15-ufbga, fcbga. It comes in low pass configuration. In addition, it is reach unaffected. The product is widely employed in data lines for mobile devices. It is supplied with 6 channels. Carreis the channel resistance of 40 ohms. It is shipped in tape & reel (tr) package . The product's diameters include 0.061" l x 0.061" w (1.54mm x 1.54mm). Values include - r = 40ohms, c = 7.5pf . Its typical moisture sensitivity level is 1 (unlimited). The product ipad™, is a highly preferred choice for users. The product has -30°c ~ 85°c operating temperature range. In addition, the height is 0.217" (5.50mm). The filter is arrange in 2nd order. This product use rc (pi) technology. Moreover, it corresponds to emif06, a base product number of the product. The product is designated with the ear99 code number.
