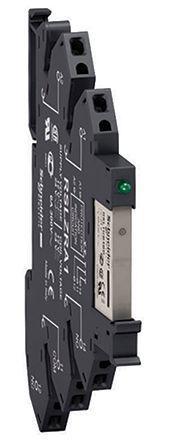

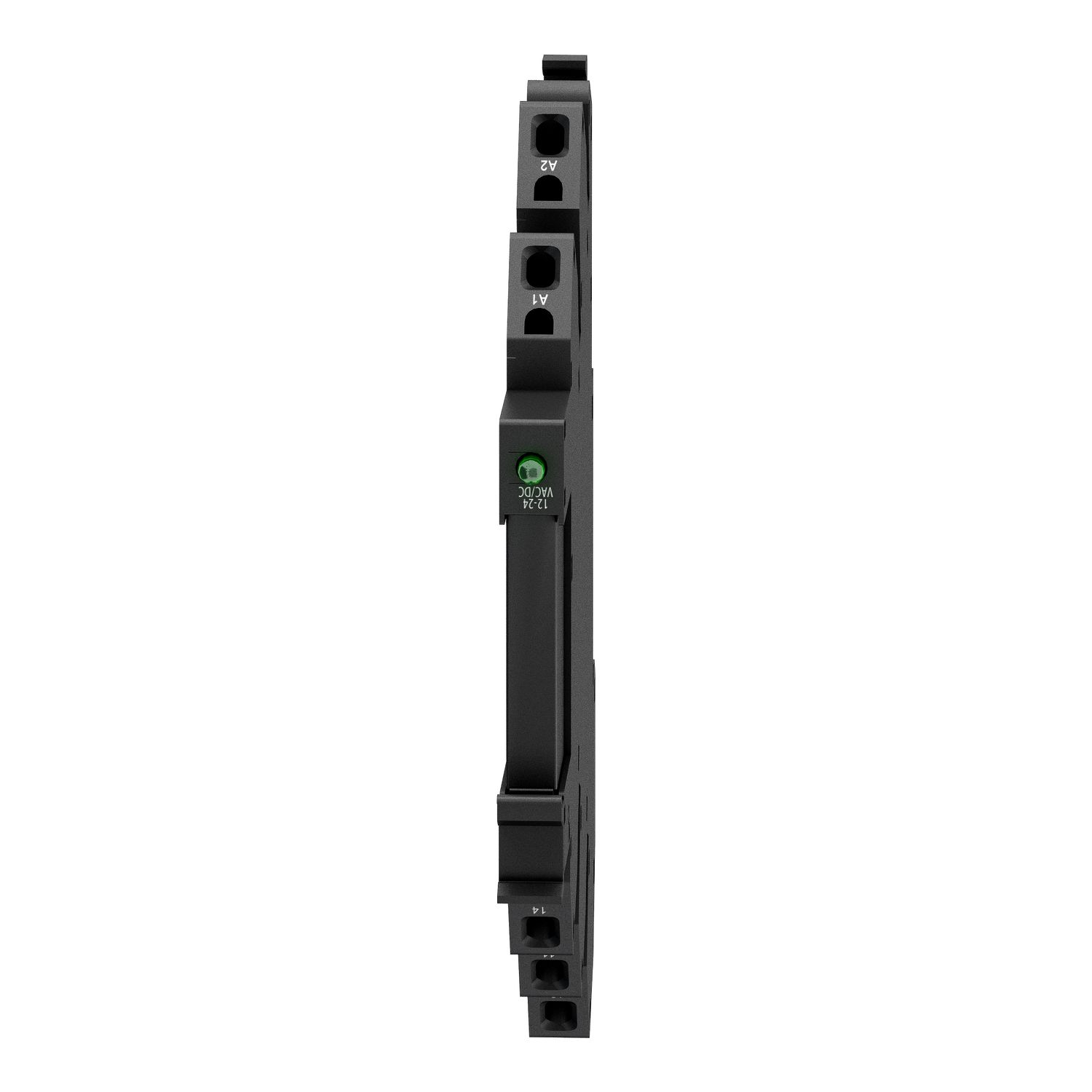

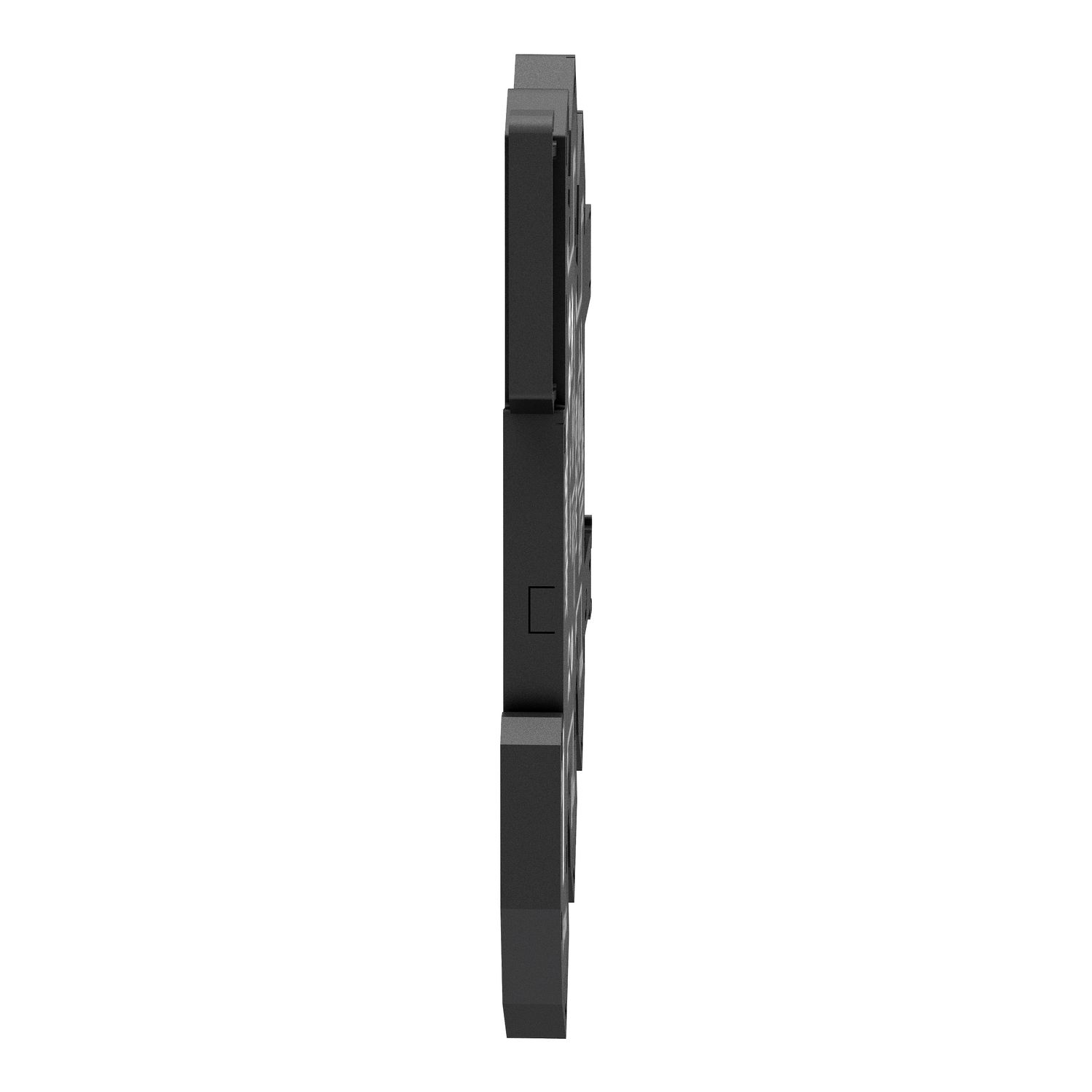

Relay Socket for use with RSL Relay 24V ac/dc

Enrgtech Part No: ET13841675
|
Manufacturer Part No:
RSL1PRBU
|
Manufacturer: Schneider Electric

RSL1PRBU Relay Socket for use with RSL Relay 24V ac/dc

Product Information

Dimensions:

101 x 78.6 x 6.2mm

Coil Voltage:

24V ac/dc

Life:

10000000 cycles

Standards Met:

CSA, UL

Switching Voltage:

277V

Maximum Operating Temperature:

+55°C

Terminal Type:

Cage Clamp

Relay Type:

Interface Relay

Operating Temperature Range:

-40 °C → +55°C

Contact Configuration:

SPDT

Depth:

78.7mm

Relay Switching Classification:

Slimline Relay

Checking for live stock

The Schneider Electric RSL1PRBU is a high-performance Harmony slim interface relay designed to optimise space within electrical enclosures. This pre-assembled unit combines a 24V AC/DC plug-in relay with a matching socket featuring spring terminals for rapid, secure installation. Its ultra-slim 6mm profile makes it an ideal solution for high-density control panels, providing reliable switching for PLC interfaces and automation systems while ensuring machine longevity and simplified maintenance.

Reasons You Should Use the Product

This Schneider Electric RSL1PRBU slim relay maximises enclosure space while ensuring fast, tool-free installation via spring terminals. Its integrated LED and protection circuit provide immediate status feedback and safeguard your automated systems.

Ultra-slim 6mm width for high-density DIN rail mounting.
Spring terminal technology for vibration-resistant and fast wiring.
Built-in LED indicator for easy visual diagnostics.

Core Performance Features & Key Uses

This interface relay acts as a dependable bridge between low-power control controllers and high-power loads. It is primarily used for signal multiplication, electrical isolation, and interfacing PLCs with industrial actuators.

Technical Specifications
Contact Configuration: 1 C/O (SPDT).
Rated Current: 6A at 250V AC.
Control Voltage: 24V AC/DC.
Mechanical Durability: 10,000,000 cycles.
Width: 6.2 mm.
Suitable Environments
Industrial automation control panels.
Hard-wired logic systems.
HVAC and pumping station controls.
Compact machinery with limited installation space.

Datasheet_RSL1PRBU(Technical Reference)
