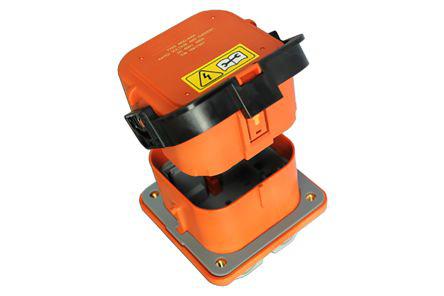

Amphenol MSD Series, Manual Service Disconnect Electric vehicle connector Socket, 230A

MSDF000F Amphenol MSD Series, Manual Service Disconnect Electric vehicle connector Socket, 230A
Amphenol

Product Information

Current Rating:
230A
Orientation:
Straight
Mounting Type:
Flange Mount
IP Rating:
IP67, IP69K
Minimum Operating Temperature:
-40°C
Series:
MSD
Colour:
Orange
Termination Method:
Plug In
Connector Type:
Manual Service Disconnect
Height:
110mm
Width:
110mm
Depth:
83mm
Applications:
PHEV System
Operating Voltage:
1000V
Contact Gender:
Female
For Use With:
HV Battery Pack
Latching Type:
2 Stage Lever
Connector Gender:
Female
Maximum Operating Temperature:
+70°C
Standards Met:
LV215, USCAR2, USCAR37
RoHs Compliant
Checking for live stock

This is MSD Series Manual Service Disconnect Electric vehicle connector Socket 230A manufactured by Amphenol. The manufacturer part number is MSDF000F. The product has a current rating of 230a. The product has a straight orientation. The product is available in flange mount configuration. It is IP rated with ip67, ip69k. Whereas, the minimum operating temperature of the product is -40°c. The product msd, is a highly preferred choice for users. It has a decent orange colour. It allows plug in termination method. manual service disconnect Connector type offer robust functionality. In addition, the height is 110mm. Furthermore, the product is 110mm wide. The product comes in 83mm depth. The product is widely employed in phev system. It has an operating voltage about 1000v . This female contact is widely suited for specific applications. The product is highly suitable for hv battery pack. In addition, it has a 2 stage lever type latching . The connector is of female gender . It has a maximum operating temperature of +70°c. The product complies with all safety standards, such as lv215, uscar2, uscar37.

pdf icon
MSDF000F Datasheet(Technical Reference)
