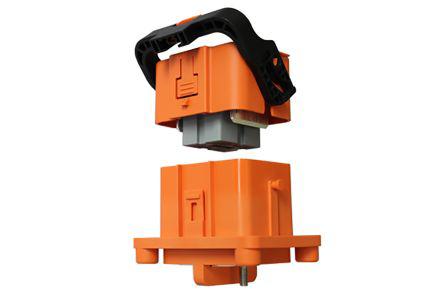

Amphenol MINI MSD Series, Mini Manual Service Disconnect Electric vehicle connector Plug, 170A

MINIMSDM000 Amphenol MINI MSD Series, Mini Manual Service Disconnect Electric vehicle connector Plug, 170A
Amphenol

Product Information

Current Rating:
170A
Orientation:
Straight
Mounting Type:
Flange Mount
IP Rating:
IP67, IP69K
Minimum Operating Temperature:
-40°C
Series:
MINI MSD
Colour:
Orange
Termination Method:
Plug In
Connector Type:
Mini Manual Service Disconnect
Height:
73.5mm
Width:
91mm
Depth:
47.9mm
Applications:
PHEV System
Operating Voltage:
1500V
Contact Gender:
Male
For Use With:
HV Battery Pack
Latching Type:
2 Stage Lever
Connector Gender:
Male
Maximum Operating Temperature:
+70°C
Standards Met:
LV215, USCAR2, USCAR37
RoHs Compliant
Checking for live stock

This is MINI MSD Series Mini Manual Service Disconnect Electric vehicle connector Plug 170A manufactured by Amphenol. The manufacturer part number is MINIMSDM000. The product has a current rating of 170a. The product has a straight orientation. The product is available in flange mount configuration. It is IP rated with ip67, ip69k. Whereas, the minimum operating temperature of the product is -40°c. The product mini msd, is a highly preferred choice for users. It has a decent orange colour. It allows plug in termination method. mini manual service disconnect Connector type offer robust functionality. In addition, the height is 73.5mm. Furthermore, the product is 91mm wide. The product comes in 47.9mm depth. The product is widely employed in phev system. It has an operating voltage about 1500v . This male contact is widely suited for specific applications. The product is highly suitable for hv battery pack. In addition, it has a 2 stage lever type latching . The connector is of male gender . It has a maximum operating temperature of +70°c. The product complies with all safety standards, such as lv215, uscar2, uscar37.
