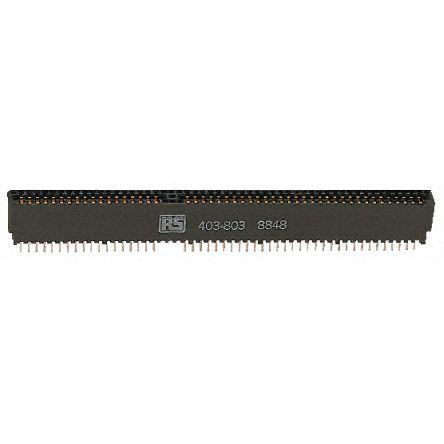

Cinch PCB Edge Connector, PCB Mount Mount, 49 Way, 2 Row, 2.54mm Pitch, 3A

Enrgtech Part No: ET14133559
|
Manufacturer Part No:
50-52SNL-ATF
|
Manufacturer: Cinch

50-52SNL-ATF Cinch PCB Edge Connector, PCB Mount Mount, 49 Way, 2 Row, 2.54mm Pitch, 3A

Product Information

Current Rating:

Minimum Operating Temperature:

-55°C

Mounting Type:

PCB Mount

Maximum Operating Temperature:

+105°C

Body Orientation:

Straight

Termination Method:

Solder

Length:

138.7mm

Housing Material:

Glass Fibre Reinforced PET

Width:

9.3mm

Depth:

15.1mm

Number of Rows:

Contact Plating:

Gold over Nickel

Checking for live stock

The Cinch 50-52SNL-ATF is a durable, high-density PCB-mount edge connector featuring 49 contacts in a dual-row, straight-orientation layout. Engineered for reliable, high‑performance connectivity in industrial and computing environments.

Product Technical Specifications

Number of Contacts: 49 (2‑row).
Pitch: 2.54 mm (0.1‑inch).
Current Rating: 3 A per contact.
Operating Temperature: –55 °C to +105 °C.
Housing Material: Glass fibre-reinforced PET, rugged and flame-resistant.
Contact Material & Plating: Brass contacts with gold-over‑nickel plating for corrosion resistance and signal integrity.
Dimensions: Length 138.7 mm; width 9.3 mm; depth 15.1 mm.
Mounting & Termination: PCB-mount style; solder‑tail termination; includes a keying way for correct orientation during assembly.

Why Buy It?

This Cinch edge connector delivers robust and reliable performance in high‑density PCB applications, ideal for backplanes, industrial control, legacy computing (IBM PC AT‑compatible), and test‑bench setups. Its high-temperature tolerance, durable housing, and gold‑plated contacts make it perfect for demanding environments.

Unparalleled Benefits of the PCB Edge Connector

Reliable Connectivity: Gold‑plated brass ensures low-resistance, high‑integrity signal paths.
High Current Capacity: Supports up to 3 A per contact for power-intensive PCBs.
Rugged Construction: PET housing withstands thermal cycles and mechanical stress.
Assembly Efficiency: Solder‑termination and keying features simplify integration and reduce misalignment risk.

AT/XT PC Edge Connectors Data Sheet(Technical Reference)
