Schneider Electric SEA9BN24PEV, Distribution Board, 24 (TP) + E/N Way,

SEA9BN24PEV Schneider Electric , Distribution Board, 24 (TP) + E/N Way,
SEA9BN24PEV Schneider Electric , Distribution Board, 24 (TP) + E/N Way,
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Series:
SEA9
Range:
Acti 9
Electrical Phase:
3
Number of Outgoing Ways:
24
RoHs Compliant
Checking for live stock

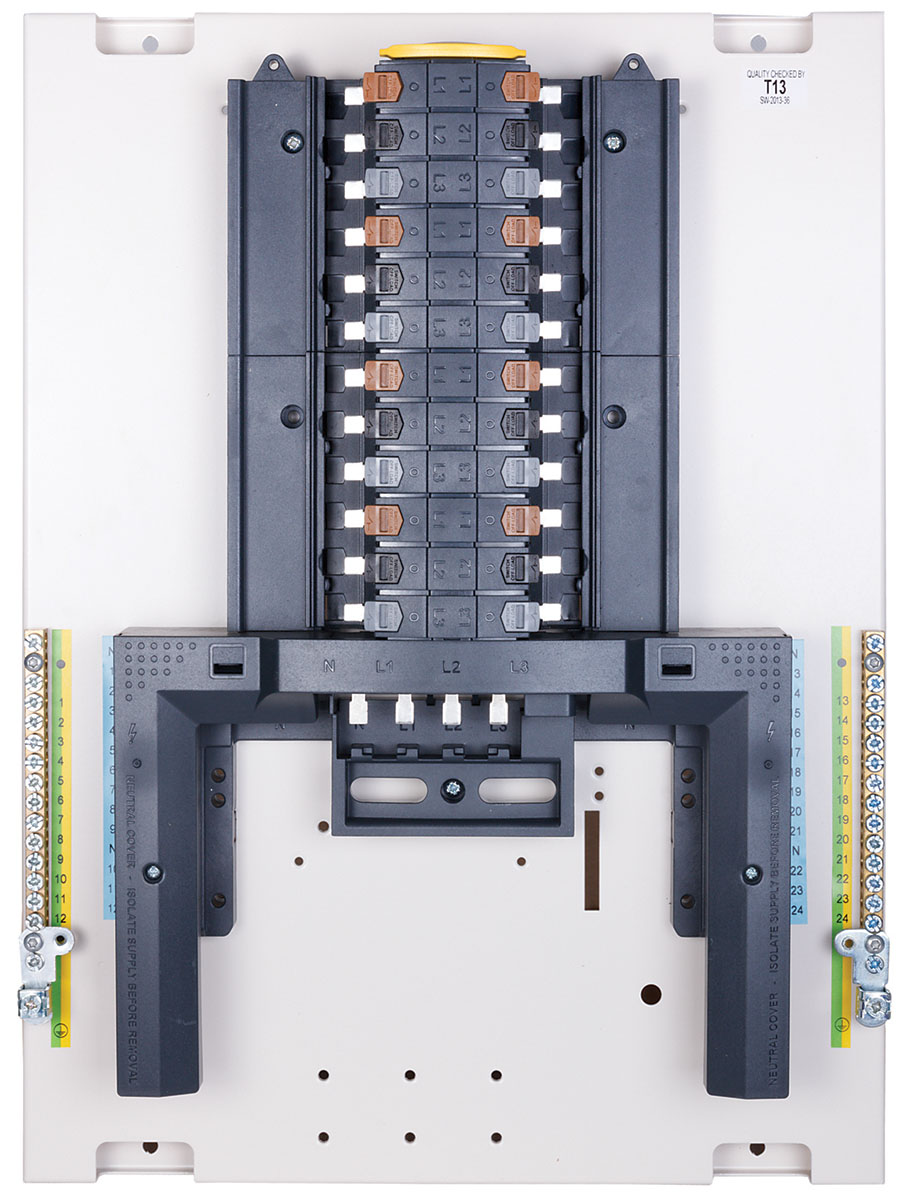

The Schneider Electric SEA9BN24PEV is a pan‑assembly from the Acti9 Isobar B series designed for 3‑phase power distribution systems. With 24 outgoing triple‑pole (TP) ways plus combined earth/neutral bars, this unit supports a rated current of 250 A and accommodates one 3P+N+E incomer. Engineered for commercial and industrial applications, the board is equipped with a mounting plate, DIN rail, neutral and grounding bars for flexible installation in enclosure‑build or retrofit projects.

Special Features and Benefits of the Product

  • 24 outgoing TP ways plus E/N bar enable extensive circuit distribution.
  • Rated bus assembly at 250 A supports high‑current systems.
  • Fully encapsulated busbar system and non‑removable interlock improve safety and cut out unused ways.
  • Supplied with mounting plate, DIN rails, neutral and grounding bars for easier system integration. 
  • Compact footprint with 896 mm length × 350 mm width × 105 mm depth aids installation in restricted panel spaces.

Built Tough for Industrial‑Grade Distribution

The SEA9BN24PEV assembly provides robust power distribution for 3‑phase systems, combining high current capacity and a broad circuit count in a single module. Its design supports rigid busbar integrity, efficient wiring layout, and rapid commissioning.

Applicable Areas of the Schneider Electric Distribution Board

  • Main distribution board in industrial control rooms.
  • Electrical distribution for commercial buildings.
  • Retrofit panel upgrades in manufacturing plants transitioning to modern modular systems.
  • Power centre for HVAC, lighting, and equipment clusters in three‑phase supply networks.
  • Control panel build‑outs where space is constrained but high circuit density is needed.

pdf icon
Datasheet SEA9BN24PEV(Technical Reference)
