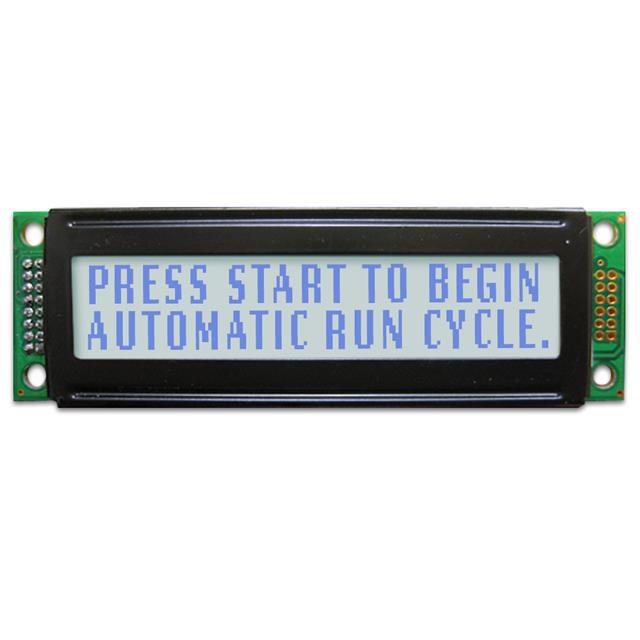

Newhaven Display Intl NHD-0220FZ-FSW-GBW-P-33V3

NHD-0220FZ-FSW-GBW-P-33V3 Newhaven Display Intl
Newhaven Display Intl

Product Information

Character Size:
3.23mm H x 1.85mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
20 x 2
Operating Temperature:
-20°C ~ 70°C
Controller Type:
SPLC780D OR ST7066U
REACH Status:
REACH Unaffected
edacadModel:
NHD-0220FZ-FSW-GBW-P-33V3 Models
Interface:
Parallel
Package:
Bulk
Viewing Area:
48.00mm L x 10.00mm W
Moisture Sensitivity Level (MSL):
Not Applicable
edacadModelUrl:
/en/models/2773592
Text Color:
Blue
standardLeadTime:
16 Weeks
Background Color:
White
Display Type:
STN - Super-Twisted Nematic
Series:
-
Number of Characters:
40
Outline L x W x H:
65.00mm x 20.00mm x 8.00mm
Voltage - Supply:
3V ~ 3.6V
Base Product Number:
NHD-0220
Display Mode:
Transflective
Dot Size:
0.33mm W x 0.36mm H
Backlight:
LED - White
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0220FZ-FSW-GBW-P-33V3. Its character size is 3.23mm h x 1.85mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 20 x 2 display format. The product has -20°c ~ 70°c operating temperature range. The product has integrated with a splc780d or st7066u, a versatile and functional controller. In addition, it is reach unaffected. A bespoke product is parallel interface. It is shipped in bulk package . Provides a 48.00mm l x 10.00mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in blue colour. It has a long 16 weeks standard lead time. The product has a classic white background colour. It features a remarkable stn - super-twisted nematic display. Consists of 40 characters. Outline Specifications include in (L x W x H) - 65.00mm x 20.00mm x 8.00mm. It has optimum voltage supply of 3v ~ 3.6v. Moreover, it corresponds to nhd-0220, a base product number of the product. Typically has a transflective display mode. Has a dot size of 0.33mm w x 0.36mm h. Backlight Options - led - white. The product is designated with the ear99 code number.
