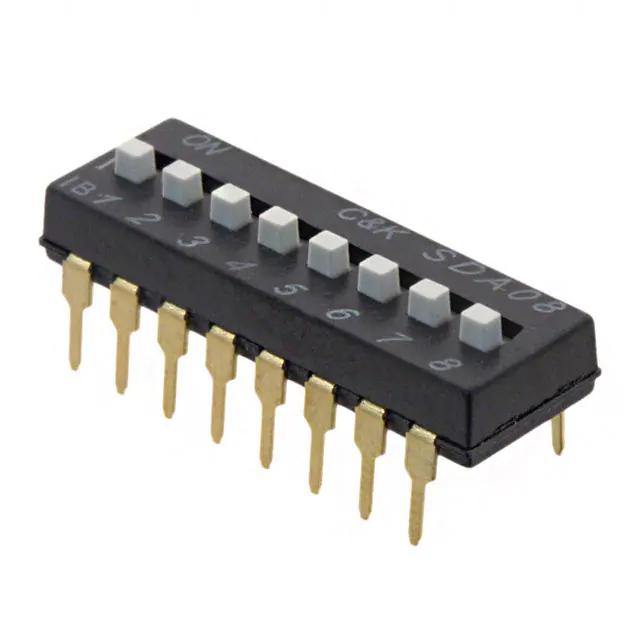

C&K SDA08H1BD

SDA08H1BD C&K
SDA08H1BD
SDA08H1BD
ET10976259
ET10976259
DIP Switches
DIP Switches
SDA08H1BD C&KC&K
C&K

Product Information

Minimum Operating Temperature:
-40°C
Mounting Type:
Through Hole
Operating Temperature Range:
-40 → +85°C
Contact Current Rating:
25 mA @ 24 V dc
Package Style:
DIP
Contact Configuration:
SPST
Actuator Type:
Extended
Mechanical Life:
1000Cycles
Maximum Operating Temperature:
+85°C
Number of Positions:
8
Contact Material:
Gold Plated Beryllium Copper
Manufacturer Standard Lead Time:
19 Weeks
Washable:
No
Detailed Description:
Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Electrical Life:
1,000 Cycles
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.228" (5.80mm)
Mechanical Life:
1,000 Cycles
Number of Positions:
8
Base Part Number:
SDA08H
Actuator Level:
Raised
Manufacturer:
C&K
Voltage Rating:
24VDC
Contact Finish:
Gold
Body Material:
Polyphenylene Sulfide (PPS)
Circuit:
SPST
Current Rating (Amps):
25mA
Mounting Type:
Through Hole
Series:
SDA
Length:
0.876" (22.26mm)
Packaging:
Tube
Customer Reference:
Actuator Type:
Slide (Standard)
Pitch:
0.100" (2.54mm), Full
Contact Material:
Beryllium Copper
RoHs Compliant
Checking for live stock

This is manufactured by C&K. The manufacturer part number is SDA08H1BD. Whereas, the minimum operating temperature of the product is -40°c. The product is available in through hole configuration. The product has -40 → +85°c of operating temperature range. The rated contact current is 25 ma @ 24 v dc. Its package is of dip style . The contact is equipped with spst configuration. The product carries extended actuator. The product also provide mechanical stability with 1000cycles. It has a maximum operating temperature of +85°c. The product carries possible position value of 8. The product is made from sturdy gold plated beryllium copper materials. It has typical 19 weeks of manufacturer standard lead time. Washable - no. It features dip switch spst 8 position through hole slide (standard) actuator 25ma 24vdc. The product offers long-lasting services of 1,000 cycles. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. It is 0.228" (5.80mm) high above board. The product also provide mechanical stability with 1,000 cycles. Base Part Number: sda08h. Features a raised actuator level. The c&k's product offers user-desired applications. Moreover, the product has a nominal 24vdc voltage rating. Furthermore, the product is galvanized with excellent gold contact finishing. The product's body is nicely designed from polyphenylene sulfide (pps) materials. It has an integral spst circuit. Additionally, the product's output is 25ma. The product sda, is a highly preferred choice for users. Its accurate length is 0.876" (22.26mm). In addition, tube is the available packaging type of the product. The product carries slide (standard) actuator. Moreover, the product is 0.100" (2.54mm), full. The product is made from sturdy beryllium copper materials.

pdf icon
SDA Series Low Profile DIP Switches Data Sheet(Technical Reference)
pdf icon
SDA Series Dip Datasheet(Datasheets)
