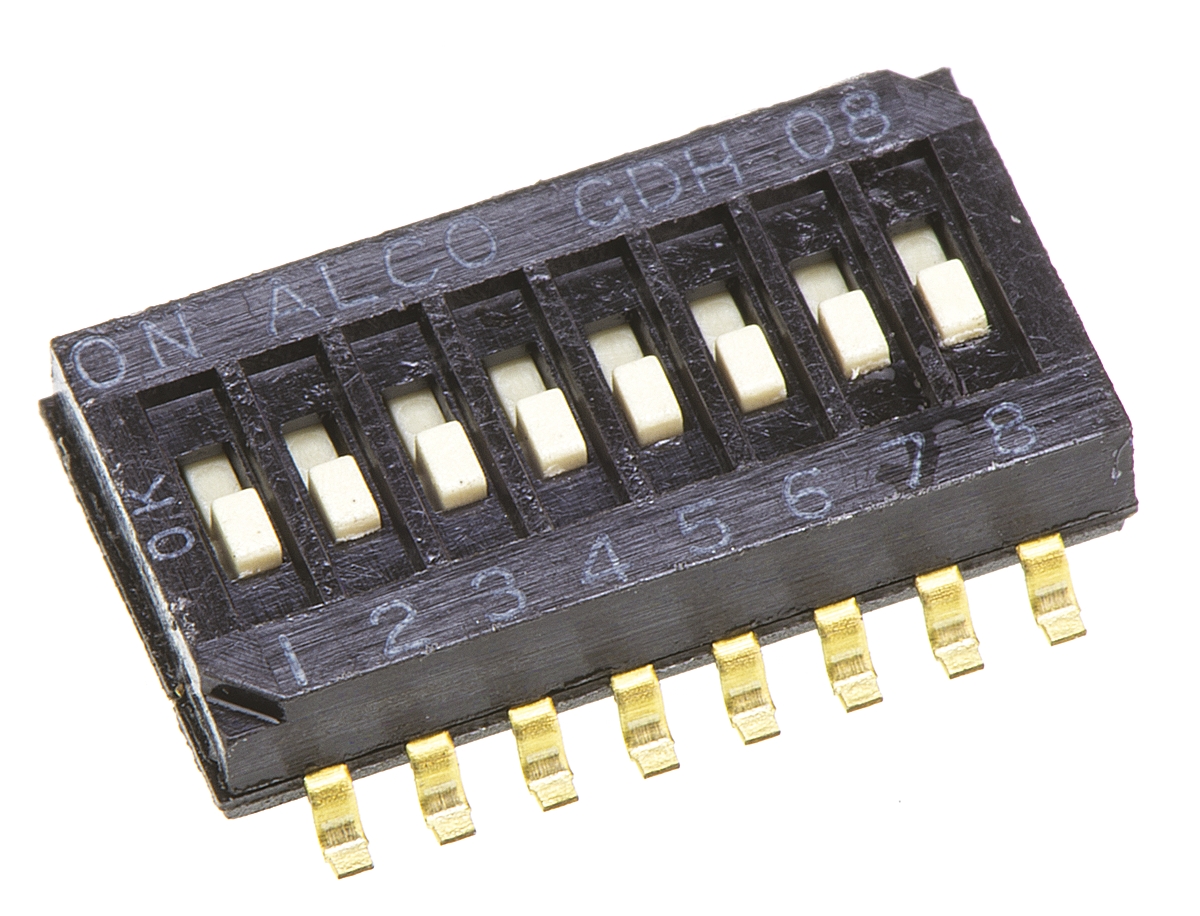

TE Connectivity 1-1571983-1, 8 Way Surface Mount DIP Switch SPST, Rocker Actuator

Enrgtech Part No: ET13809781
|
Manufacturer Part No:
1-1571983-1
|
Manufacturer: TE Connectivity

1-1571983-1 TE Connectivity , 8 Way Surface Mount DIP Switch SPST, Rocker Actuator

Product Information

Mounting Type:

Surface Mount

Operating Temperature Range:

-30 → +85°C

Contact Current Rating:

25 mA@ 24 V dc

Package Style:

DIP

Minimum Operating Temperature:

-30°C

Contact Configuration:

SPST

Actuator Type:

Rocker

Maximum Operating Temperature:

+85°C

Number of Positions:

Contact Material:

Copper Alloy

Checking for live stock

The TE Connectivity 1-1571983-1 is a high-performance 8-way surface mount DIP switch featuring SPST (Single Pole, Single Throw) configuration and rocker actuators. Designed for reliable signal control in compact electronic circuits, this switch is ideal for UK-based applications requiring manual configuration, address setting, or mode selection. Its robust build and compact footprint make it suitable for many electronics. It offers precise and manual control of circuit logic settings, providing a dependable and space-saving solution for system configuration and customisation.

Working Principle of the 1-1571983-1, 8-Way Surface Mount DIP Switch SPST, Rocker Actuator

Each of the eight switches operates independently as an SPST mechanism, allowing ON/OFF control of individual signal paths using the rocker actuators.

Unique Features of the Product

8-way SPST configuration.
Rocker-style actuator for easy operation.
Surface mount design.
Gold-plated contacts for improved conductivity.
Compact and low-profile construction.

What Benefits Does It Offer to Users?

Easy manual configuration of logic settings.
Durable and long-lasting contact performance.
Saves PCB space with a surface mount layout.
Ideal for high-density circuit applications.

Usage Information of the 8-Way Surface Mount DIP Switch SPST, Rocker Actuator

Telecommunications equipment
Consumer electronics
Industrial control panels
Security and alarm systems
Test and measurement devices

DIP switch,SMT,SPST,8 ps,recessed rocker(Technical Reference)
