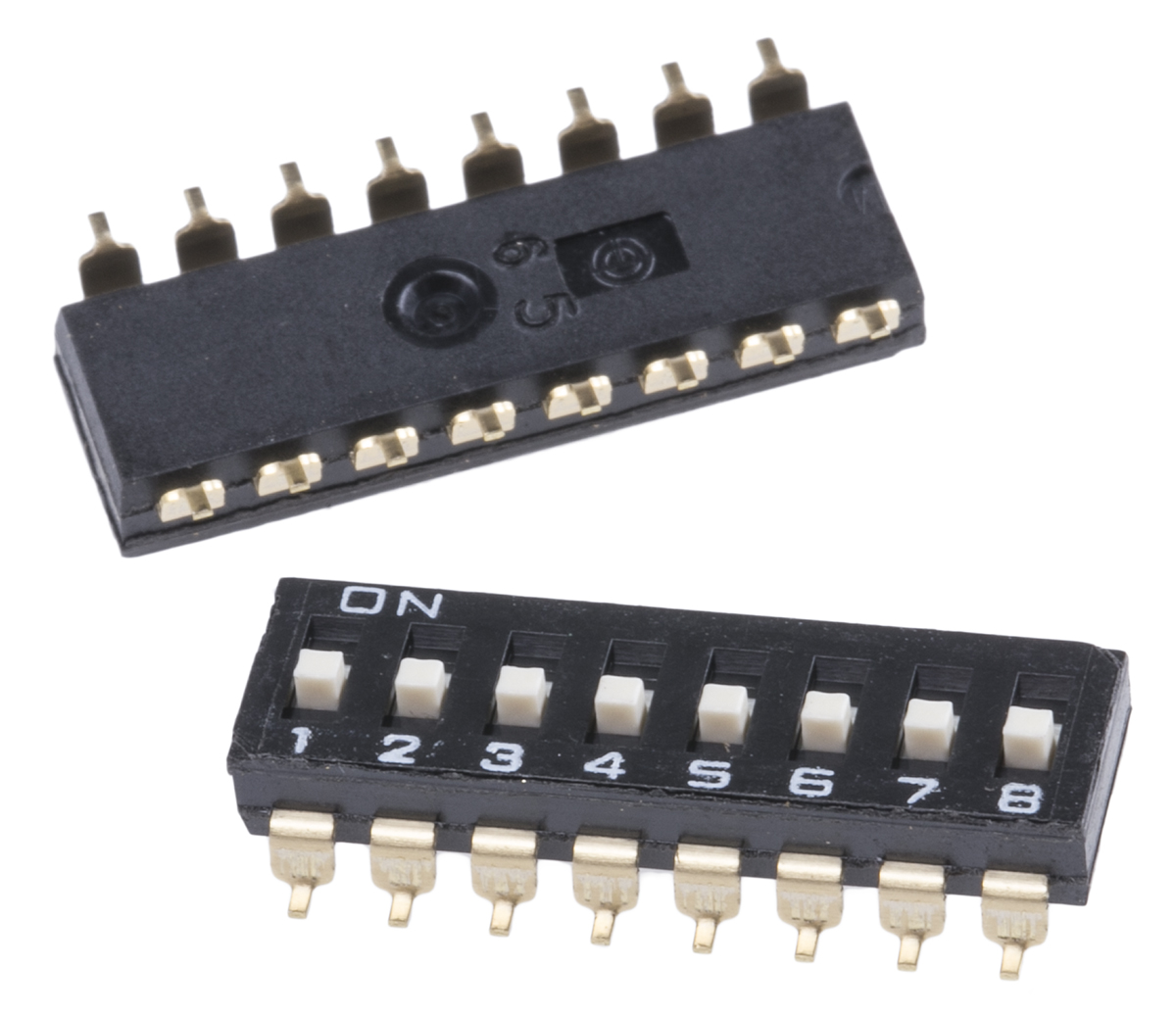

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : Omron
Manufacturer Part No : A6S-8104-H
Enrgtech Part No : ET10003050
Product Range : PolySwitch RXEF Series

8 Way Surface Mount DIP Switch 8P

Slide Switch Surface mount DIL switches designed to DIL standards. Allow automatic mounting with IC insertion machines. Surface mounting Flat actuators available as sealed tape versions Gold plated contacts Contact resistance: 200mΩ max Insulation resistance: 100MΩ min at 250Vdc RoHS compliant Mechanical life: 1000 operations Dual-In-Line Switches Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Product Information

Minimum Operating Temperature : -20°C
Mounting Type : Surface Mount
Operating Temperature Range : -20 → +70°C
Contact Current Rating : 25 mA@ 24 V dc
Package Style : DIP
Dielectric Strength : 500V ac
Contact Configuration : 8P
Actuator Type : Slide
Mechanical Life : 1000Operations
Maximum Operating Temperature : +70°C
Number of Positions : 8
rohs : RoHS Certificate of Compliance
Contact Material : Gold Plated

Technical Documents

  • Datasheet (Technical Reference)
  • DIP Switch A6S-H Data Sheet (Technical Reference)

Availability:
895
in stock
Check now

Rate:
  • 5
    +
    £ 1.943
