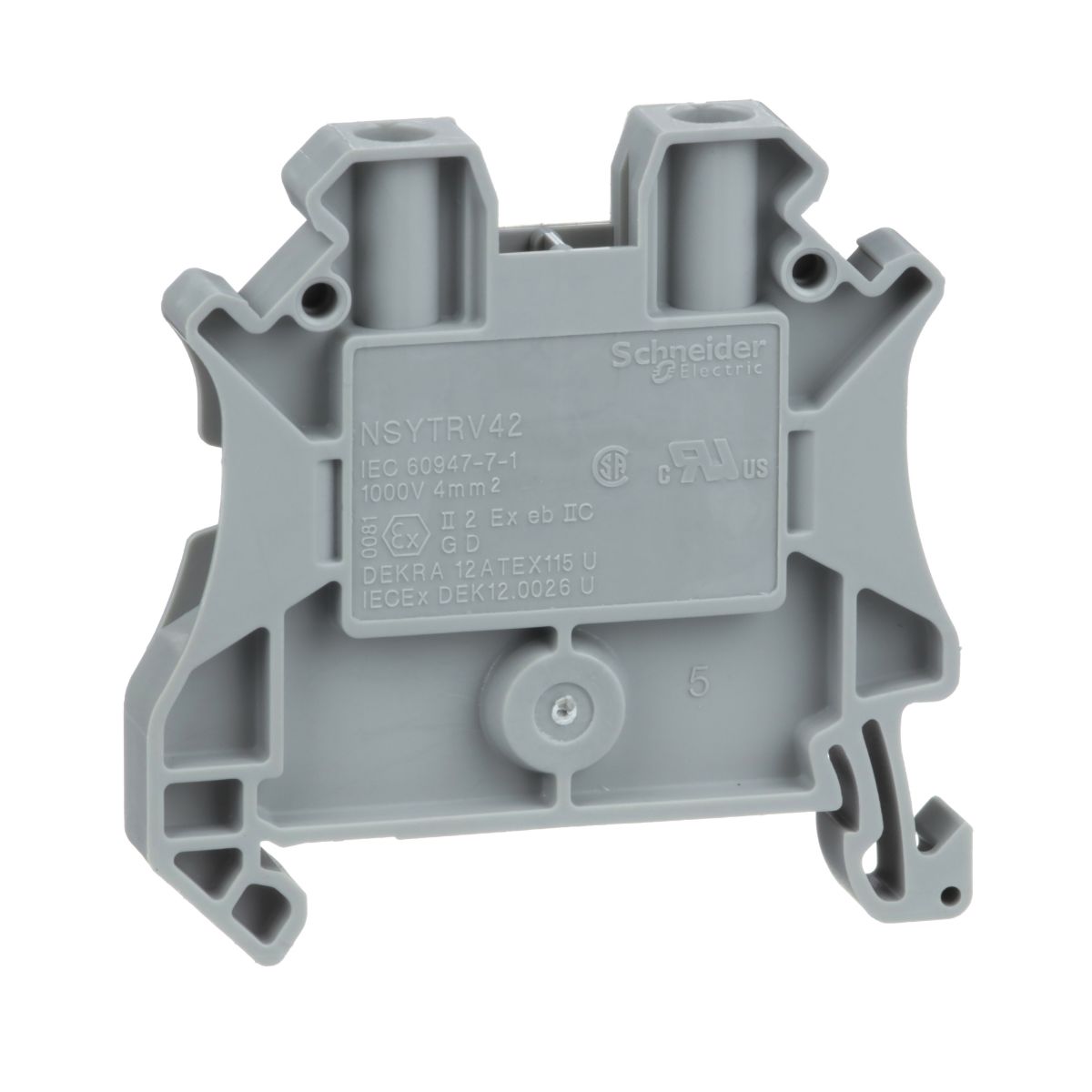

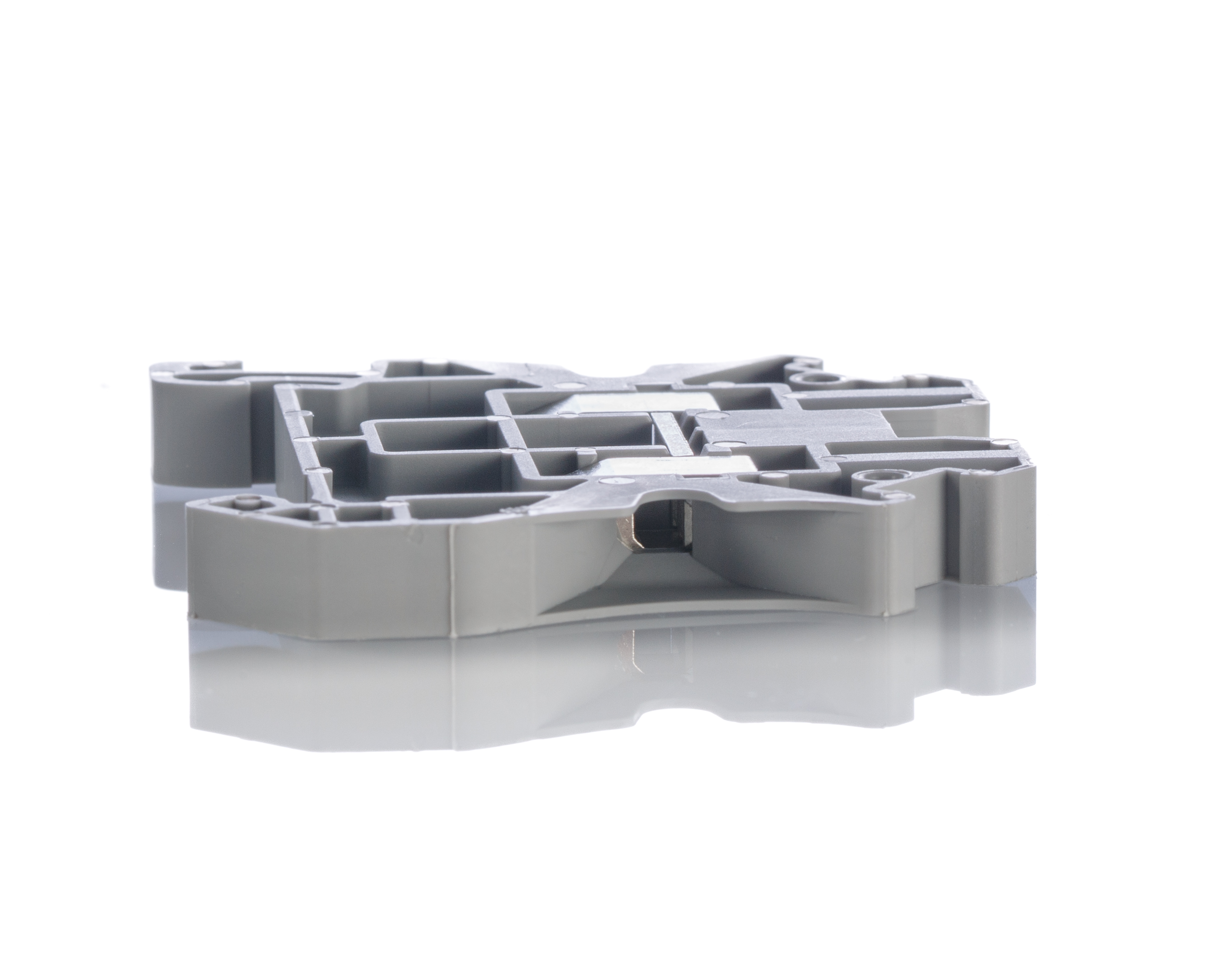

Schneider Electric, NSYTRV Series , 1 kV Din Rail Terminal, Screw Termination

Enrgtech Part No: ET14012869
|
Manufacturer Part No:
NSYTRV42
|
Manufacturer: Schneider Electric

NSYTRV42 Schneider Electric, NSYTRV Series , 1 kV Din Rail Terminal, Screw Termination

Product Information

Current Rating:

32A

Number of Levels:

Single

Fused:

Standards Met:

CSA, CURus, DNV, EAC, GL, IEC 60243-1, LR, VDE

Voltage Rating:

1 kV

Series:

NSYTRV

Colour:

Grey

Hazardous Area Certification:

ATEX

Termination Method:

Screw

Cable CSA:

0.14 → 4mm²

Maximum Operating Temperature:

+130°C

Minimum Operating Temperature:

-40°C

Checking for live stock

The NSYTRV42 from Schneider Electric is a high-performance, single-level feed-through terminal block designed for DIN‑rail applications requiring both compactness and superior voltage endurance. With a nominal cross‑section of 4 mm², screw‑type connections accepting 26–10 AWG wires, and a maximum rated operational voltage of 1000 V (A) according to EN/IEC 60947‑7‑1, it delivers robust and reliable interconnection in industrial control, power distribution and automation panels. The clip‑on mounting of the Linergy TR series simplifies installation, while the grey polyamide housing supports extreme ambient conditions from ‑40 °C to +130 °C.

Crucial Features and Benefits of the Schneider Electric 1 kV DIN Rail Terminal Block

Rated up to 1000 V (A) AC according to EN/IEC 60947‑7‑1 for high‑voltage busbar and control applications.
Handles up to 32 A nominal current (as per EN/IEC 60947‑7‑1) with screw terminals designed for conductor areas of 0.14–6 mm² (solid) and 0.2–4 mm² (flexible).
Compact 4 mm² nominal cross‑section and 2‑point feed‑through configuration allowing efficient signal or power pass‑through on DIN rails.
Screw‑type connection ensures strong, reliable termination; tightening torque specified at 0.6–0.8 N·m for consistent performance.
Clip‑on DIN‑rail mounting enables fast installation and flexible configuration in enclosures and control cabinets.

Engineered for Efficient, Durable Terminal Connections

The NSYTRV42 is built to support high reliability in high‑density control and power distribution systems. Its screw terminal design supports a broad conductor range and provides superior contact stability compared to spring‑type alternatives, especially in vibration‑laden environments.

Product Usage Information

Feed‑through terminal block for high‑voltage control panels and power racks
DIN‑rail termination in industrial automation cabinets (PLC, drives, motor control centres)
Signal and power distribution in switchgear and distribution boards
Modular wiring hubs for factory automation, process control and HVAC systems
Retrofit or expansion of control enclosures with high‑voltage circuits
Use in rail‑mounted instrumentation and measurement systems requiring robust terminations
