Number of Levels:
1
Fused:
No
Termination Type:
Screw
Series:
UT 16
Colour:
Green
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
16 AWG
Terminal Block Current:
76A
Hazardous Area Certification:
IECEx/ATEX
Standards/Approvals:
EAC Ex, IEC 60947-7-1, ATEX, cUL, cULus, DNV GL, EAC, VDE, UL, RS, PRS, IECEX, IECEE CB
Voltage:
1 kV
Cable CSA:
1.5 to 25 mm²
Maximum Wire Size AWG:
4 AWG

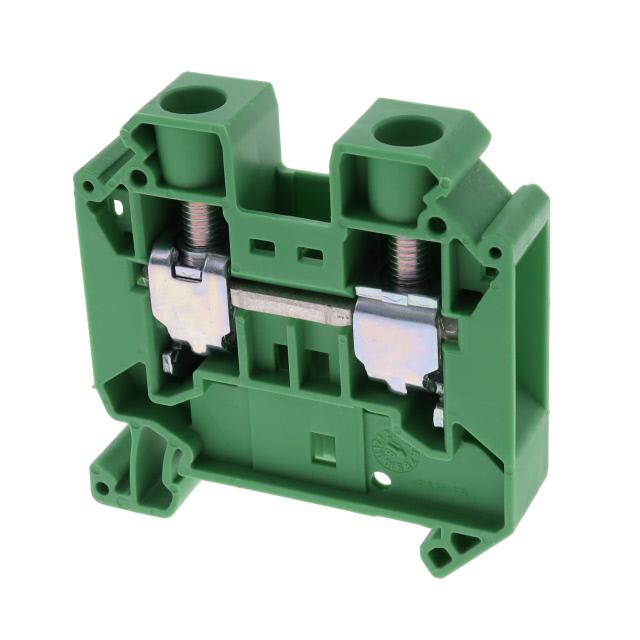

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Feed Through
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
1.5-25mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
14mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
76 A
Wire Gauge or Range - AWG:
4-16 AWG
Voltage - UL:
600V
standardLeadTime:
8 Weeks
Terminal - Width:
12.2mm
Disconnect Type:
-
Voltage - IEC:
1000V
Features:
-
Color:
Green
Series:
CLIPLINE UT
Fuse Type:
-
Current - UL:
85 A
Number of Levels:
1
ECCN:
EAR99
