Number of Levels:
2
Fused:
No
Termination Type:
Plug-In
Series:
STTB 2.5/2P-PV
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
28 AWG
Terminal Block Current:
22A
Hazardous Area Certification:
No
Standards/Approvals:
CSA, Bureau Veritas, VDE, UL, RS, LR, IECEE CB, IEC 61984, EAC, DNV GL, cULus, cUL
Voltage:
500 V
Cable CSA:
0.08 to 4 mm²
Maximum Wire Size AWG:
12 AWG

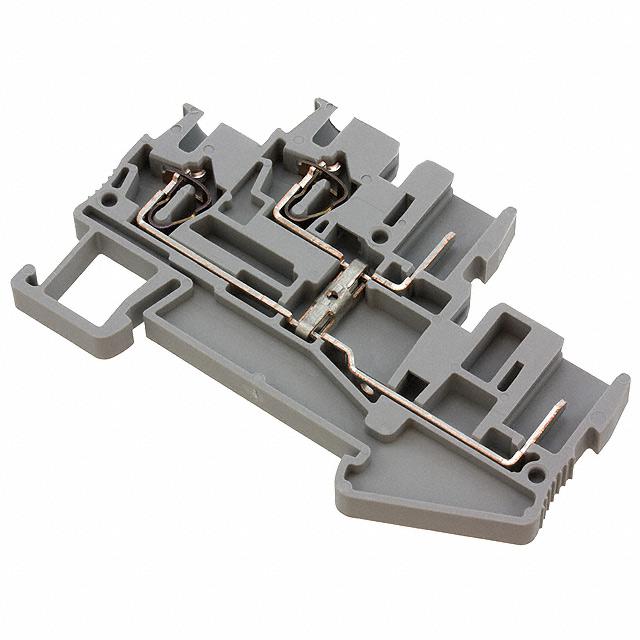

Product Type:
Double Level Terminal Block
Sub Type:
Plug-In
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
4
Wire Gauge or Range - mm²:
0.08-4mm²
Height (Max):
2.165" (55.00mm)
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
22 A
Number of Levels:
2; Connected
Wire Gauge or Range - AWG:
12-28 AWG
Voltage - UL:
600 V
standardLeadTime:
8 Weeks
Terminal - Width:
5.2mm
Voltage - IEC:
500 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE STTB
Length:
2.913" (74.00mm)
Packaging:
Bulk
Current - UL:
20 A
ECCN:
EAR99
