Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Series:
PT
Colour:
Blue
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
14 AWG
Terminal Block Current:
17.5A
Hazardous Area Certification:
IECEx/ATEX
Standards/Approvals:
IEC 60947-7-1, VDE, NK, LR, IECEE CB Scheme, ABS, Bureau Veritas, EAC, UL Recognised, CSA, RS, cUL Recognised, cULus Recognised, DNV GL
Voltage:
500 V
Cable CSA:
1.5 mm²
Maximum Wire Size AWG:
14 AWG

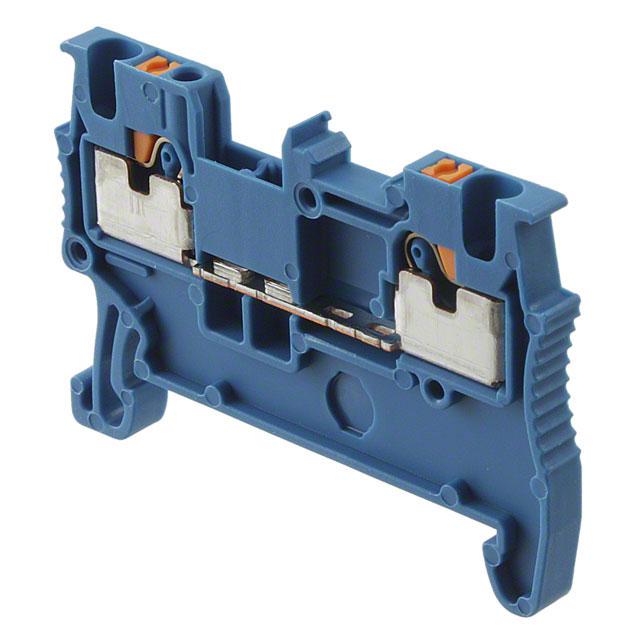

Product Type:
DIN Rail Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Feed Through
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
0.14-1.5mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
17.5 A
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
300V
standardLeadTime:
8 Weeks
Terminal - Width:
3.5mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Blue
Series:
CLIPLINE PT
Fuse Type:
-
Current - UL:
15 A
Number of Levels:
1
ECCN:
EAR99
