Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-40°C
Width:
32mm
MTBF:
135000h
Electrical Phase:
1
Type:
Switch Mode
Load Regulation:
1.5%
Standards Met:
ANSI/ISA 12.12.01, CSA C22.2 No. 107.1, CSA C22.2 No. 213, CSA C22.2 No. 60950-1, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3 Class B, EN/IEC 60204-1, EN/IEC 61558-2-16, UL 508, UL 60950-1 Recognised
Efficiency:
86 % @ 230 V ac, 87 % @ 115 V ac
Input Voltage:
230V ac
Number of Outputs:
1
Ripple And Noise:
190mV Pk-Pk
Depth:
91.2mm
Special Features:
5-Year Warranty, DC Input Supported, High Efficiency, Overload, Power Boost Function, Short Circuit Proof, Side-by-Side Mount, Virtually No Inrush Current
Mounting Type:
DIN Rail Mount
Output Current:
1.3A
Series:
S8VK-S
Height:
90mm
Output Voltage:
24V dc
Power Rating:
30W

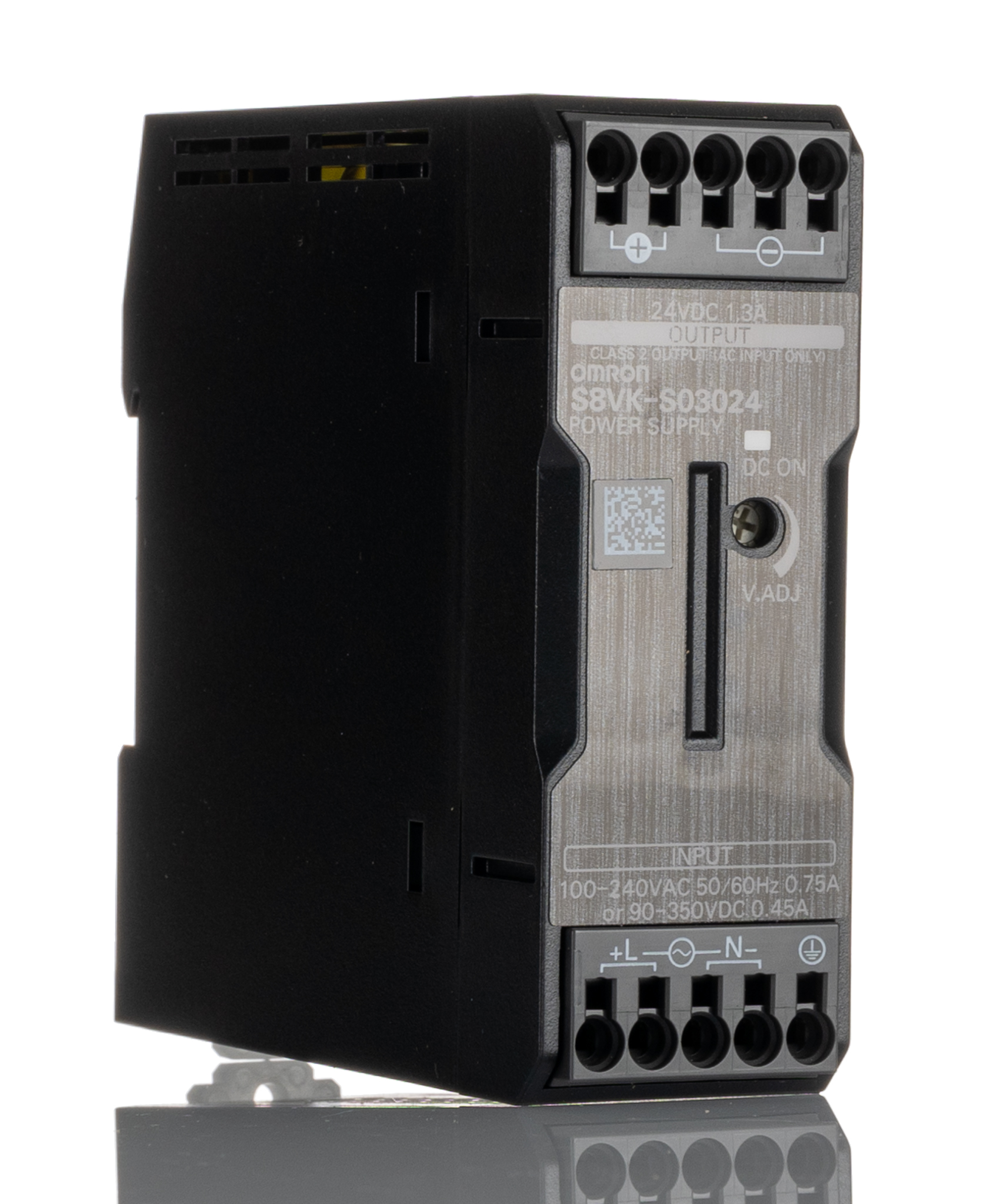

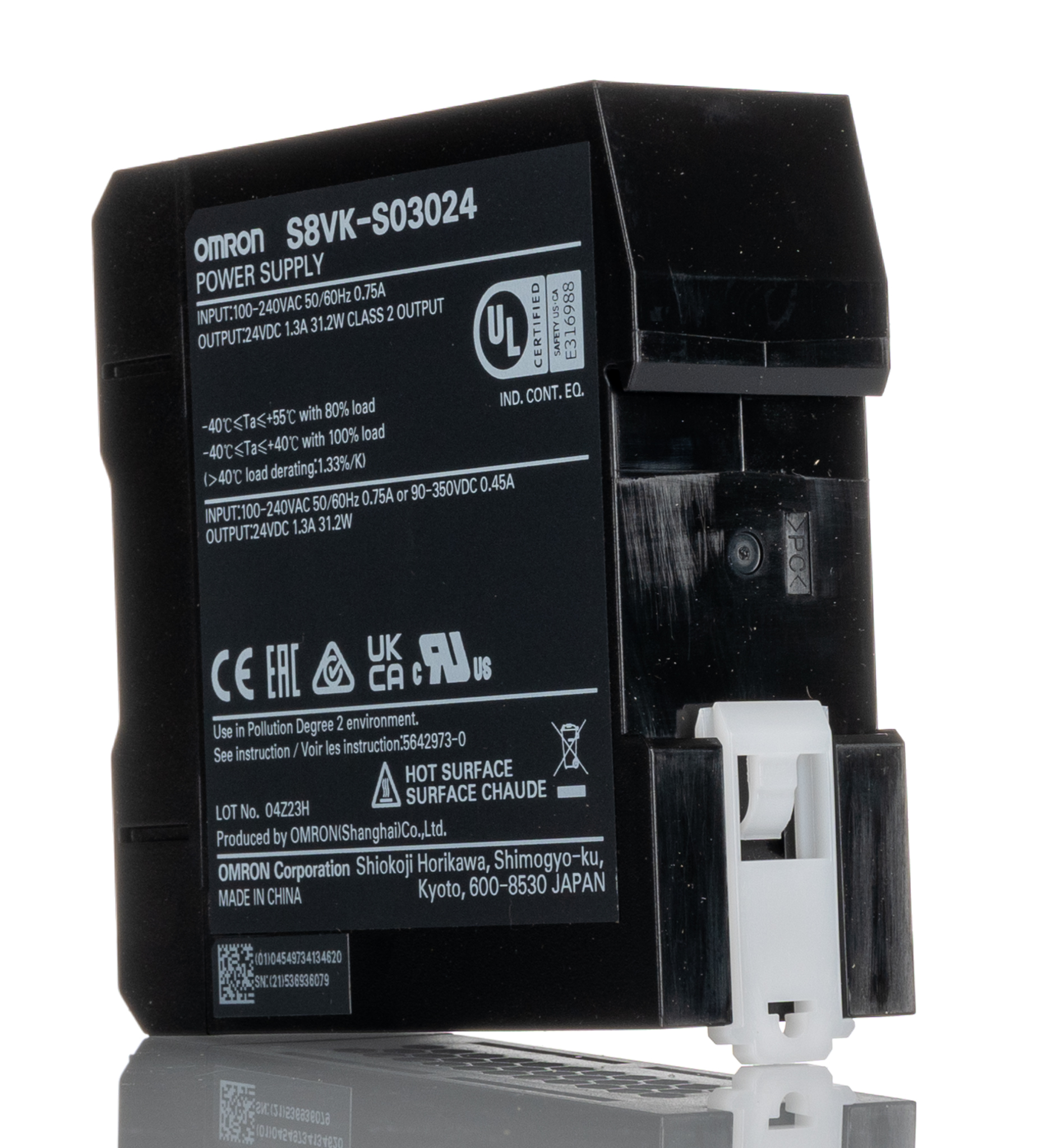

This is S8VK-S Switched Mode Power Supply DIN Rail Power Supply 30W 24V dc/ 1.3A manufactured by Omron. The manufacturer part number is S8VK-S03024. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -40°c. Furthermore, the product is 32mm wide. The MTBF values include 135000h. Its electrical phase configuration includes 1. It comes in switch mode configuration. Load Regulation - 1.5%. The product complies with all safety standards, such as ansi/isa 12.12.01, csa c22.2 no. 107.1, csa c22.2 no. 213, csa c22.2 no. 60950-1, en 50178, en 55011 class b, en 60950-1, en 61000-3-2, en 61204-3 class b, en/iec 60204-1, en/iec 61558-2-16, ul 508, ul 60950-1 recognised. It is a highly efficient product with an 86 % @ 230 v ac, 87 % @ 115 v ac of high efficiency. Its input voltage is 230v ac. Additionally, the product is supplied with 1 outputs. Carries 190mv pk-pk ripple and noise. The product comes in 91.2mm depth. The product also provides special features, such as 5-year warranty, dc input supported, high efficiency, overload, power boost function, short circuit proof, side-by-side mount, virtually no inrush current. The product is available in din rail mount configuration. It carries 1.3a output current. The product s8vk-s, is a highly preferred choice for users. In addition, the height is 90mm. Features a 24v dc output voltage. Feature 30w of power rating.
