Number of Levels:
1
Fused:
No
Termination Type:
Screw
Series:
UT 4
Colour:
Yellow
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
32A
Hazardous Area Certification:
IECEx/ATEX
Standards/Approvals:
IECEE CB, PRS, RS, UL, VDE, IEC 60947-7-1, EAC, DNV GL, cULus, cUL, CSA
Voltage:
1000 V
Cable CSA:
0.14 to 6 mm²
Maximum Wire Size AWG:
10 AWG

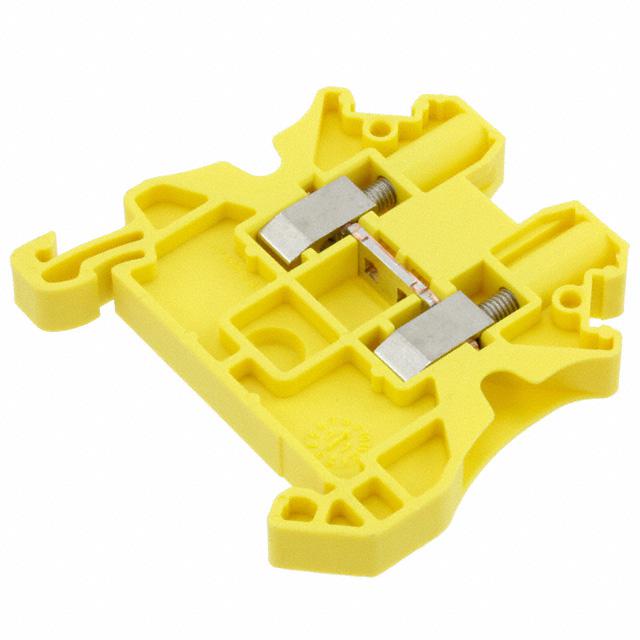

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Feed Through
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
0.14-6mm²
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
9mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
32 A
Number of Levels:
1
Wire Gauge or Range - AWG:
10-26 AWG
Voltage - UL:
600V
standardLeadTime:
5 Weeks
Terminal - Width:
6.2mm
Disconnect Type:
-
Voltage - IEC:
1000V
Features:
-
Color:
Yellow
Series:
CLIPLINE UT
Packaging:
Bulk
Fuse Type:
-
Current - UL:
30 A
ECCN:
EAR99
