Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Series:
PT 1.5/S-QUATTRO-PE
Colour:
Yellow, Green
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Hazardous Area Certification:
ATEX
Standards/Approvals:
NK, VDE, UL Recognised, LR, IECEX, IECEE CB Scheme, IEC 60947-7-2, GL, EAC Ex, EAC, cULus Recognised, cUL Recognised, CSA, Bureau Veritas, ABS
Voltage:
6 kV
Pitch:
3.5mm
Cable CSA:
0.14 to 1.5 mm²
Maximum Wire Size AWG:
16 AWG

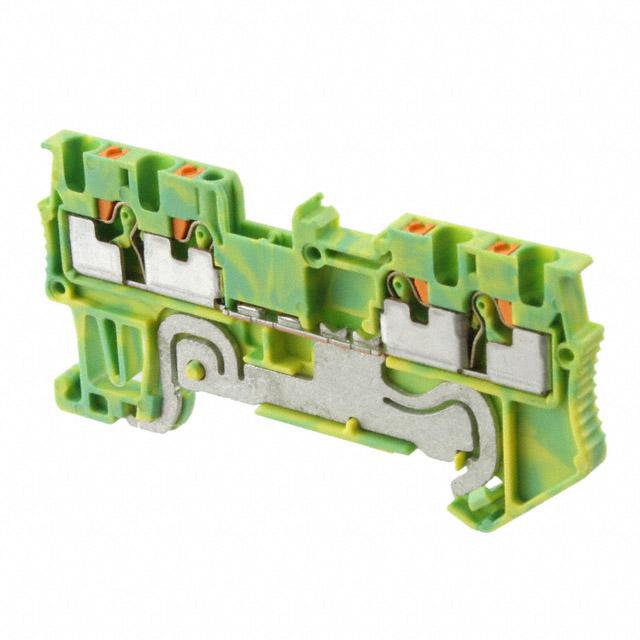

Product Type:
Earth Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Single-Level
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Ground, Earth
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-1.5mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
-
standardLeadTime:
8 Weeks
Terminal - Width:
3.5mm
Disconnect Type:
-
Voltage - IEC:
-
Features:
-
Color:
Green, Yellow
Series:
CLIPLINE PT
Fuse Type:
-
Number of Levels:
1
ECCN:
EAR99
