Number of Levels:
1
Fused:
No
Minimum Operating Temperature:
-45°C
Series:
QTC 2.5 Clipline
Colour:
Grey
Minimum Wire Size AWG:
20 AWG
Terminal Block Current:
24A
Hazardous Area Certification:
No
Standards/Approvals:
NK, NEPSI, LR, IECEX, IEC 60947-7-1, EAC Ex, DNV, cULus, CSA, CCC, Bureau Veritas, ATEX, ABS
Voltage:
800 V
Cable CSA:
2.5 mm²
Maximum Wire Size AWG:
14 AWG

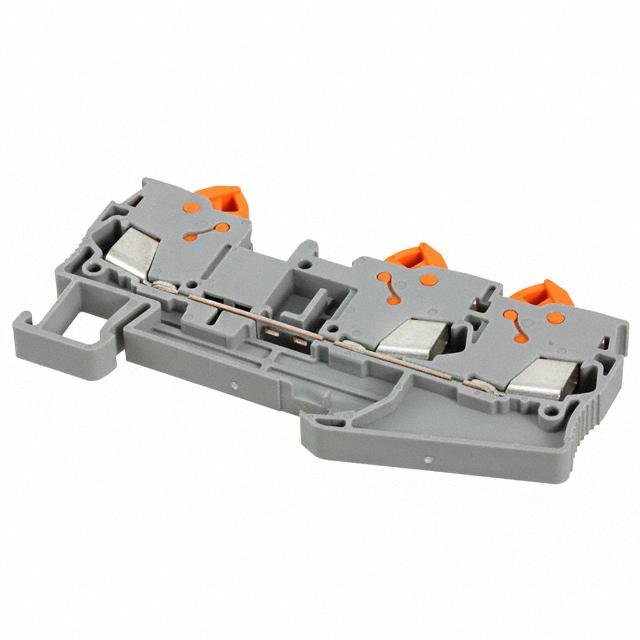

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
90°C
Sub Type:
Feed Through
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
IDC
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
3
Wire Gauge or Range - mm²:
0.5-2.5mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24 A
Wire Gauge or Range - AWG:
14-20 AWG
Voltage - UL:
600V
standardLeadTime:
15 Weeks
Terminal - Width:
6.2mm
Disconnect Type:
-
Voltage - IEC:
800V
Features:
-
Color:
Gray
Series:
CLIPLINE QTC
Fuse Type:
-
Current - UL:
15 A
Number of Levels:
1
ECCN:
EAR99
