Number of Levels:
1
Fused:
No
Termination Type:
Screw
Series:
UT 2.5 BU
Colour:
Blue
Minimum Operating Temperature:
-50°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
24A
Hazardous Area Certification:
ATEX
Standards/Approvals:
IECEE CB Scheme, IECEX, LR, PRS, UL Recognised, VDE, IEC 60947-7-1, EAC Ex, EAC, DNV GL, cULus Recognised, cUL Recognised, CSA, ATEX
Voltage:
1 kV
Cable CSA:
0.14 to 4 mm²
Maximum Wire Size AWG:
12 AWG

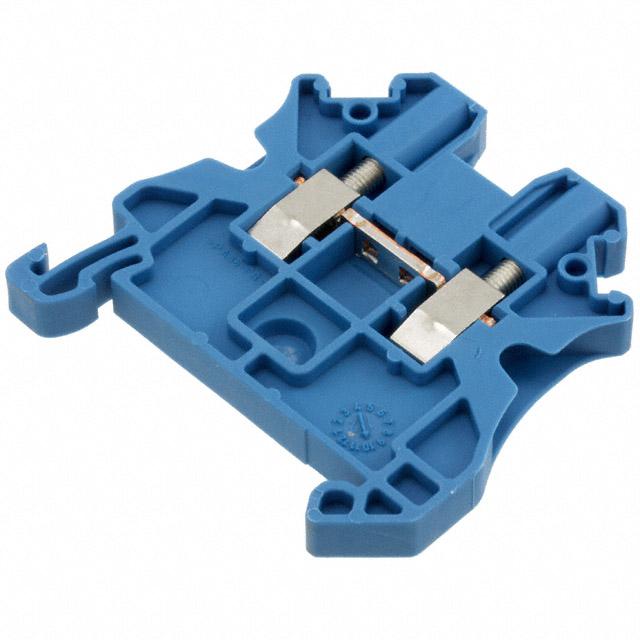

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
110°C
Sub Type:
Feed Through
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
0.14-4mm²
REACH Status:
REACH Affected
edacadModel:
3044089 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2426244
Manufacturer:
Phoenix Contact
Stripping Length:
9mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
24 A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600V
standardLeadTime:
8 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
1000V
Features:
-
Color:
Blue
Series:
CLIPLINE UT
Packaging:
Bulk
Fuse Type:
-
Current - UL:
20 A
ECCN:
EAR99
