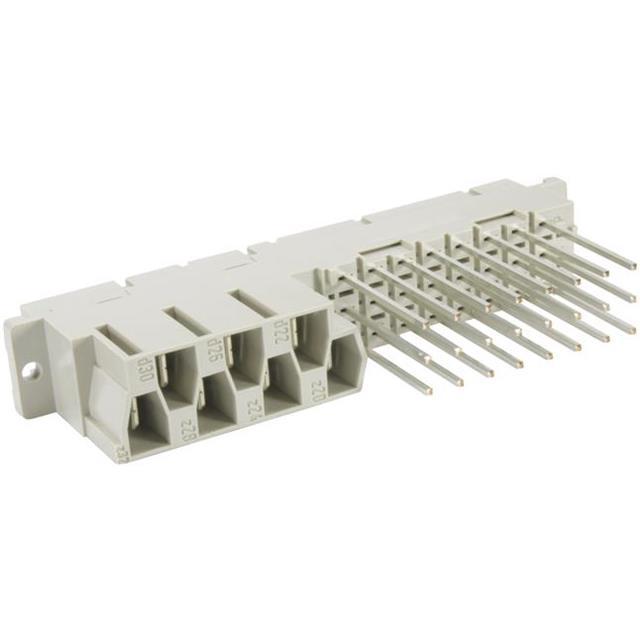

HARTING 09062312821
Product Information
Row Loading:
d/b/z
Current Rating:
15 (Power) A, 6 (Signal) A
Minimum Operating Temperature:
-55°C
Maximum Contact Resistance:
15 (Signal) mΩ, 8 (Power) mΩ
Gender:
Female
Body Orientation:
Straight
Pitch:
5.08 mm, 10.16 mm
Termination Method:
Solder
Housing Material:
Thermoplastic
Number of Rows:
3
Contact Plating:
Gold over Nickel (Power), Gold over Palladium-Nickel over Nickel (Signal)
Series:
09 06
Number of Contacts:
24 + 7
Type:
MH 24+7
Maximum Operating Temperature:
+125°C
Contact Material:
Copper Alloy
Style:
MH
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness:
-
Number of Positions:
31 (24 + 7 Power)
REACH Status:
REACH Unaffected
edacadModel:
09062312821 Models
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4334871
Package:
Bulk
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Level, Class:
1
Termination:
Quick Connect, Wire Wrap
standardLeadTime:
8 Weeks
Current Rating (Amps):
6A, 15A
Features:
-
Mounting Type:
Through Hole
Series:
DIN 41612
Pitch:
0.200" (5.08mm)
Number of Positions Loaded:
All
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09062312821 on website for other similar products.
We accept all major payment methods for all products including ET10681755. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09062312821 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN 41612 category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09062312821. You can also check on our website or by contacting our customer support team for further order details on HARTING 09062312821.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10681755 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10681755.
Yes. We ship 09062312821 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09062312821. It contains d/b/z row loading . The product has a current rating of 15 (power) a, 6 (signal) a. Whereas, the minimum operating temperature of the product is -55°c. Additionally, it has a maximum 15 (signal) mω, 8 (power) mω contact resistance . In addition, female is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 5.08 mm, 10.16 mm. It allows solder termination method. The product also features robust thermoplastic housing material. It comes in 3 of rows. The high-quality gold over nickel (power), gold over palladium-nickel over nickel (signal) is used as contact plating material. The product 09 06, is a highly preferred choice for users. The product contains 24 + 7 contacts. It comes in mh 24+7 configuration. It has a maximum operating temperature of +125°c. The product is made from sturdy copper alloy materials. Additionally, the product is designed with mh Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polybutylene terephthalate (pbt), glass filled insulating material. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 31 (24 + 7 power). In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product consists of 1 levels, classes. The product features quick connect, wire wrap termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 6a, 15a. The product is available in through hole configuration. The product din 41612, is a highly preferred choice for users. Moreover, the product is 0.200" (5.08mm). However, all is the Number of Positions Loaded. The product is designated with the ear99 code number.
