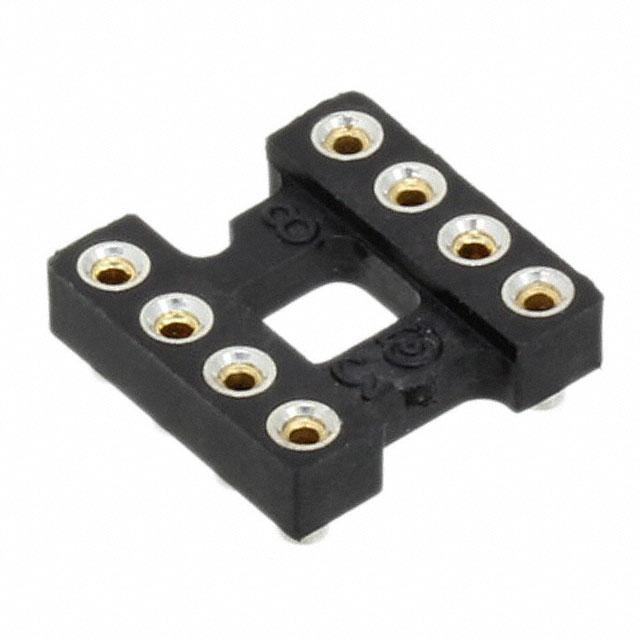

Aries Electronics 08-3518-00

08-3518-00 Aries Electronics
08-3518-00
08-3518-00
ET12116603
Aries Electronics

Product Information

Row Width:
7.62mm
Number of Contacts:
8
Current Rating:
3A
Dimensions:
10.16 x 3.71 x 10.16mm
Mounting Type:
Surface Mount
Termination Method:
Solder
Length:
10.16mm
Housing Material:
Nylon
Width:
3.71mm
Depth:
10.16mm
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Orientation:
Vertical
Contact Material:
Beryllium Copper
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55°C
Frame Type:
Open Frame
Contact Resistance:
-
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature:
-
Number of Positions or Pins (Grid):
8 (2 x 4)
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Gold
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
Brass
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
3 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Surface Mount
Termination Post Length:
0.125" (3.18mm)
Series:
518
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
ECCN:
EAR99
Base Product Number:
08-3518
Pitch - Post:
0.100" (2.54mm)
RoHs Compliant
Checking for live stock

This is manufactured by Aries Electronics. The manufacturer part number is 08-3518-00. Its row is 7.62mm in width . The product contains 8 contacts. The product has a current rating of 3a. The given dimensions of the product include 10.16 x 3.71 x 10.16mm. The product is available in surface mount configuration. It allows solder termination method. Its accurate length is 10.16mm. The product also features robust nylon housing material. Furthermore, the product is 3.71mm wide. The product comes in 10.16mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.54mm. The product has a vertical orientation. The product is made from sturdy beryllium copper materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55°c. The frame is designed as [Fram Type] type. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyamide (pa46), nylon 4/6, glass filled housing material. The product is supplied with 8 (2 x 4) positions/pins. Additionally, it features 200.0µin (5.08µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable brass. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 3 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The termination post is a 0.125" (3.18mm) long. The product 518, is a highly preferred choice for users. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 08-3518, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).

pdf icon
Series 518 Surface Mount Open Frame Collet Sockets Data Sheet(Technical Reference)
pdf icon
518 SMD Open Frame Socket(Datasheets)
pdf icon
Aries Electronics REACH(Environmental Information)
pdf icon
Aries Electronics RoHS Cert(Environmental Information)
