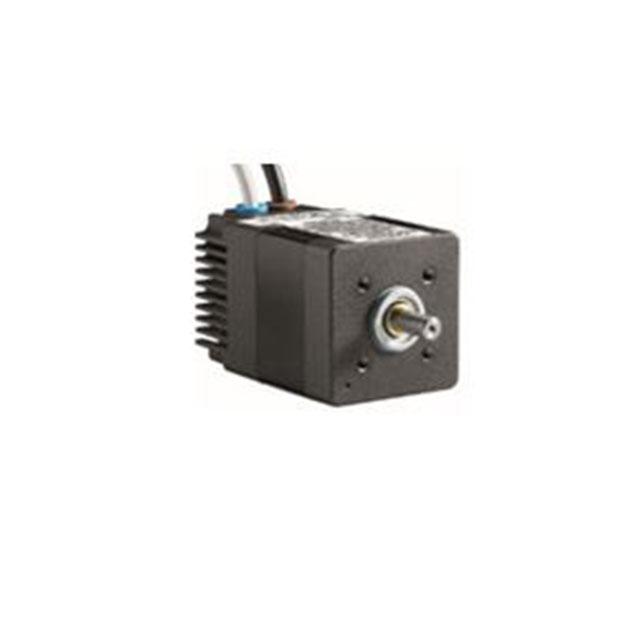

Crouzet 80280007
Product Information
Shaft Diameter:
8mm
Current Rating:
12.5 A @ 32 V, 15 A @ 12 V, 15 A @ 24 V
Dimensions:
57.2 x 137 x 57.2 mm
DC Motor Type:
Brushless
Series:
80280 TNi21
Output Speed:
1900 rpm @ 24 V, 2400 rpm @ 32 V, 800 rpm @ 12 V
Length:
57.2mm
Maximum Output Torque:
1000 mNm
Width:
137mm
Depth:
57.2mm
Supply Voltage:
10 → 36 V dc
Power Rating:
199 W @ 24 V, 251 W @ 32 V, 84 W @ 12 V
Torque - Rated (oz-in / mNm):
69.4 / 490
HTSUS:
8501.20.4000
RoHS Status:
RoHS Compliant
Termination Style:
Cable with Connector
Power - Rated:
170W
Operating Temperature:
-30°C ~ 70°C
Approval Agency:
CE
Motor Type:
Brushless (BLDC)
Type:
DC Motor
Function:
Standard
Voltage - Rated:
12 ~ 32VDC
REACH Status:
REACH Unaffected
Mounting Hole Spacing:
-
edacadModel:
80280007 Models
Length - Shaft and Bearing:
0.984" (25.00mm)
edacadModelUrl:
/en/models/6137230
RPM:
3000 RPM
Diameter - Shaft:
0.315" (8.00mm)
Package:
Bulk
Encoder Type:
-
Size / Dimension:
Square - 2.244" x 2.244" (57.00mm x 57.00mm)
Gear Reduction Ratio:
-
standardLeadTime:
14 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Integrated Controller
Weight:
3.1 lbs (1.4 kg)
Series:
DCmind, 80280, TNi21
Torque - Max Momentary (oz-in / mNm):
141.6 / 1000
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 80280007 on website for other similar products.
We accept all major payment methods for all products including ET11268695. Please check your shopping cart at the time of order.
You can order Crouzet brand products with 80280007 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC Motors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Crouzet 80280007. You can also check on our website or by contacting our customer support team for further order details on Crouzet 80280007.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11268695 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Crouzet" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11268695.
Yes. We ship 80280007 Internationally to many countries around the world.
This is manufactured by Crouzet. The manufacturer part number is 80280007. The diameter of the shaft is 8mm. The product has a current rating of 12.5 a @ 32 v, 15 a @ 12 v, 15 a @ 24 v. The given dimensions of the product include 57.2 x 137 x 57.2 mm. In addition, in includes a brushless type DC motor . The product 80280 tni21, is a highly preferred choice for users. Its output speed is 1900 rpm @ 24 v, 2400 rpm @ 32 v, 800 rpm @ 12 v . Its accurate length is 57.2mm. Its maximum output torque is about 1000 mnm . Furthermore, the product is 137mm wide. The product comes in 57.2mm depth. Features 10 → 36 v dc supply voltage. Feature 199 w @ 24 v, 251 w @ 32 v, 84 w @ 12 v of power rating. It has a rated torque (oz-in / mNm) of 69.4 / 490. It is assigned with possible HTSUS value of 8501.20.4000. The product is rohs compliant. Moreover, it has cable with connector terminal style. It features a power rating of 170w. The product has -30°c ~ 70°c operating temperature range. It is approved by ce. This high-efficiency motor is a brushless (bldc). It comes in dc motor configuration. It performs basic function of standard. It also exhibits voltage rating of 12 ~ 32vdc. In addition, it is reach unaffected. The typical length of shaft and bearing is 0.984" (25.00mm). It provides maximum rpm up to 3000 rpm. Shaft with a 0.315" (8.00mm) diameter. It is shipped in bulk package . The product's diameters include square - 2.244" x 2.244" (57.00mm x 57.00mm). It has a long 14 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include integrated controller. The typical product's weight is 3.1 lbs (1.4 kg). The product dcmind, 80280, tni21, is a highly preferred choice for users. While 141.6 / 1000 is the maximum momentary torque. The product is designated with the ear99 code number.
