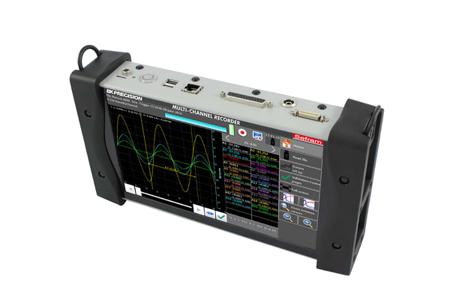

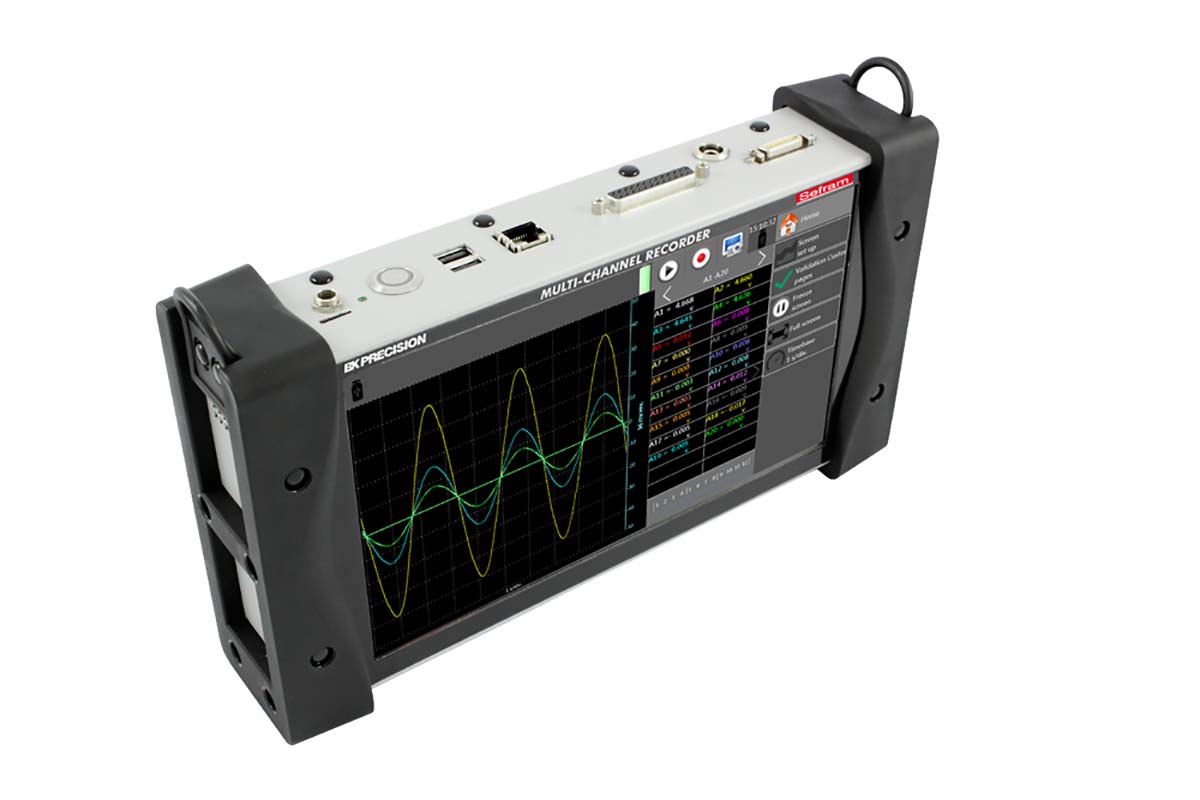

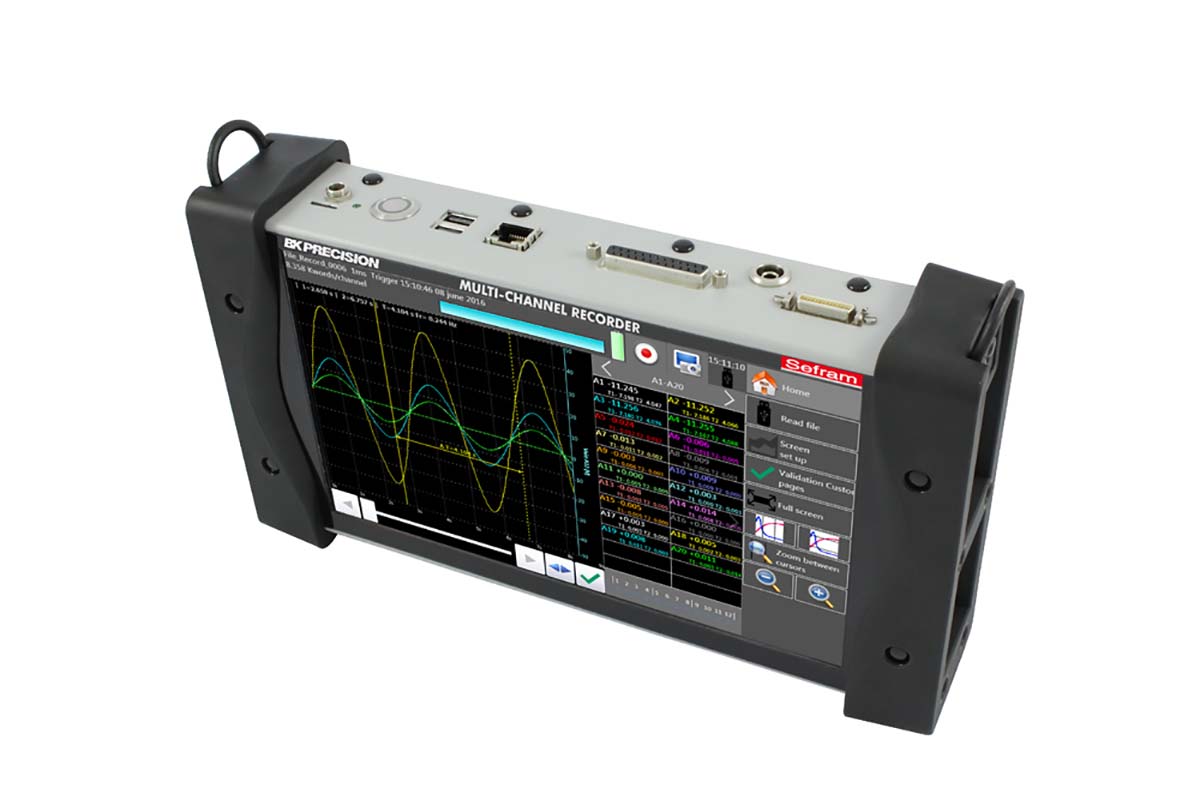

Sefram DAS 240 Current, Resistance, Temperature, Thermocouple, Voltage Data Logger, Maximum Voltage Measurement 200V

Enrgtech Part No: ET17494729
|
Manufacturer Part No:
DAS240BAT
|
Manufacturer: Sefram

DAS240BAT Sefram DAS 240 Current, Resistance, Temperature, Thermocouple, Voltage Data Logger, Maximum Voltage Measurement 200V

Product Information

Maximum Temperature Measurement:

+1000 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (S) °C, +1820 (B) °C, +2320 (C) °C, +400 (T) °C, +850 (PT100) °C, +850 (PT1000) °C, +900 (L) °C

Display Type:

LCD

Best Voltage Measurement Accuracy:

0.1 %

Sensor Type:

B, C, E, J, K, L, N, pt100, pt1000, S, T

Power Source:

Battery, Mains

Alarm:

Yes

Number of Input Channels:

Model Number:

DAS 240

Includes:

DasLab Software

Best Temperature Measurement Accuracy:

0.3 °C

Battery Life:

15 Hours

Data Logger Type:

Multipurpose

Checking for live stock

The Sefram DAS240BAT is a highly capable, multipurpose handheld data logger engineered for precision in industrial settings. Combining broad measurement versatility across voltage, current, temperature (via thermocouples and RTDs), resistance, frequency, and pulse detection, with an intuitive 10 inch colour touchscreen interface, it delivers seamless user interaction. Its portable design is enhanced by a lithium-ion battery, providing up to 15 hours of uninterrupted data logging, making it ideal for both field and factory environments. Underpinned by robust 32 GB internal storage, Ethernet, USB, and optional Wi Fi connectivity, and powered by license free DasLab software, the DAS240BAT offers high fidelity, real time monitoring and data management you can rely on, all within a CAT I 100 V safety compliant package.

What Benefits Do You Get?

With the DAS240BAT, you gain unmatched flexibility in configuring your setup, from the standard 20 analogue channels up to an impressive 200 channels, adapting effortlessly to diverse measurement needs. Its long-life battery ensures reliable performance even in remote areas, while the vivid 10 inch TFT touchscreen makes reviewing and navigating data intuitive. Thanks to its high-resolution sampling (16-bit, up to 1 kHz) and comprehensive measurement capabilities, which range from micro-voltages to high-level temperatures, the logger captures precise insights across various applications. A generous 32 GB of internal memory and support for USB external storage mean you’ll never worry about running out of space.

Sefram DAS240BAT – Product Core Features

Multipurpose measurements: voltage, current (with optional shunt), resistance, thermocouples (all types), Pt100/Pt1000 RTDs, pulse, frequency
Input channels: 20 analogue channels standard, expandable to 200; plus 12 logical inputs and 4 alarm outputs
Measurement ranges:

Voltage: from ±0.5 mV up to ±100 V (max 200 V)

Temperature: multiple thermocouple types (E, J, K, N, S, B, C, T, L); RTDs up to Pt100 / Pt1000 (2 or 3-wire)

Current: up to ~1 mA (with optional input adapter)

Resistance, pulse count, frequency/RPM

Sampling specs: 16-bit vertical resolution; up to 1 ms (1 kHz) sampling rate
Display: 10 inch colour TFT panoramic touch screen for graphical and numeric data viewing
Storage: 32 GB internal solid-state memory; supports external USB memory stick
Connectivity: 2×USB host ports, Ethernet interface, optional Wi Fi via USB dongle
Power & battery: The built-in lithium-ion battery offers up to 15 hours of autonomy and can also be run on mains power.
