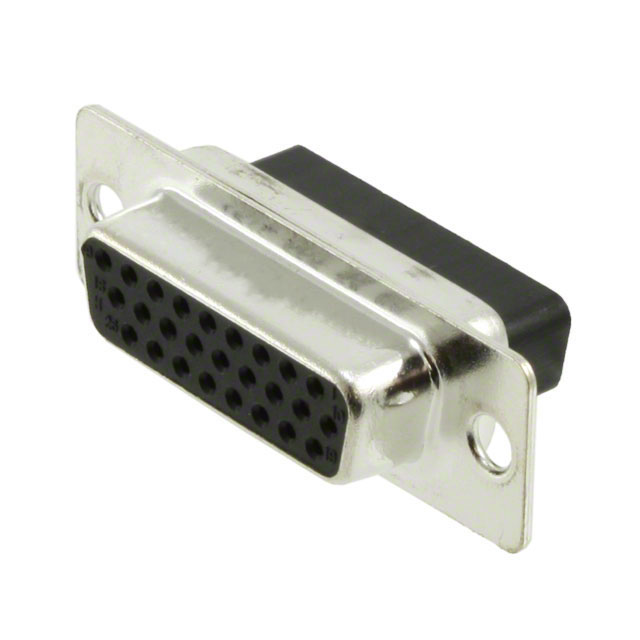

HARTING 09562004701
Product Information
Current Rating:
2.0A
Mounting Type:
Cable Mount
Gender:
Female
Body Orientation:
Straight
Termination Method:
Crimp
D Connector Type:
High Density D-Sub
Housing Material:
Steel
Width:
12.93mm
Length:
39.5mm
Minimum Operating Temperature:
-55.0°C
Pitch:
2.29mm
Number of Contacts:
26
Maximum Operating Temperature:
+105°C
Shell Size, Connector Layout:
2 (DA, A) High Density
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub, High Density
Shell Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester
standardLeadTime:
12 Weeks
REACH Status:
REACH Unaffected
Number of Positions:
26
edacadModel:
09562004701 Models
Number of Rows:
3
edacadModelUrl:
/en/models/3180891
Package:
Bulk
Connector Type:
Receptacle for Female Contacts
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Signal
Mating Cycles:
50
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Color:
Black
Series:
-
Shell Material, Finish:
Steel, Tin Plated
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09562004701 on website for other similar products.
We accept all major payment methods for all products including ET12089535. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09562004701 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub, D-Shaped Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09562004701. You can also check on our website or by contacting our customer support team for further order details on HARTING 09562004701.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12089535 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12089535.
Yes. We ship 09562004701 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09562004701. The product has a current rating of 2.0a. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows crimp termination method. Additionally, it has a high density d-sub type connector D . The product also features robust steel housing material. Furthermore, the product is 12.93mm wide. Its accurate length is 39.5mm. Whereas, the minimum operating temperature of the product is -55.0°c. Moreover, the product is 2.29mm. The product contains 26 contacts. It has a maximum operating temperature of +105°c. 2 (da, a) high density is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub, high density connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester dielectric material. It has a long 12 weeks standard lead time. In addition, it is reach unaffected. The product carries possible position value of 26. It comes in 3 of rows. It is shipped in bulk package . receptacle for female contacts Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of signal. It provides best efficiency with mating cycles of 50. The product is available in panel mount configuration. It has a classic black colour. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. The product is designated with the ear99 code number.
