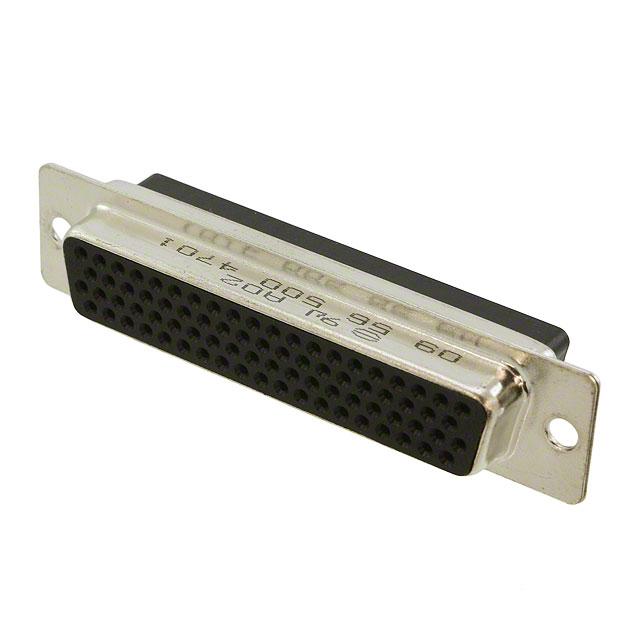

HARTING 09565004701
Product Information
Series:
D-Sub High Density
Dimensions:
67 x 15.35 x 15.2mm
Gender:
Female
Body Orientation:
Straight
Length:
67mm
Width:
15.35mm
Depth:
15.2 (Without Center Plate)mm
Pitch:
2.41mm
Number of Contacts:
78
Shell Size, Connector Layout:
5 (DD, D) High Density
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub, High Density
Shell Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
standardLeadTime:
12 Weeks
REACH Status:
REACH Unaffected
Number of Positions:
78
edacadModel:
09565004701 Models
Number of Rows:
4
edacadModelUrl:
/en/models/3180923
Package:
Tray
Connector Type:
Receptacle for Female Contacts
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Signal
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Color:
-
Series:
-
Shell Material, Finish:
Steel, Tin Plated
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09565004701 on website for other similar products.
We accept all major payment methods for all products including ET11406597. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09565004701 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub, D-Shaped Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09565004701. You can also check on our website or by contacting our customer support team for further order details on HARTING 09565004701.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11406597 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11406597.
Yes. We ship 09565004701 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09565004701. The product d-sub high density, is a highly preferred choice for users. The given dimensions of the product include 67 x 15.35 x 15.2mm. In addition, female is the available "Gender" of the product. It has straight body orientation. Its accurate length is 67mm. Furthermore, the product is 15.35mm wide. The product comes in 15.2 (without center plate)mm depth. Moreover, the product is 2.41mm. The product contains 78 contacts. 5 (dd, d) high density is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub, high density connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. It has a long 12 weeks standard lead time. In addition, it is reach unaffected. The product carries possible position value of 78. It comes in 4 of rows. It is shipped in tray package . receptacle for female contacts Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of signal. The product is available in panel mount configuration. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. The product is designated with the ear99 code number.
