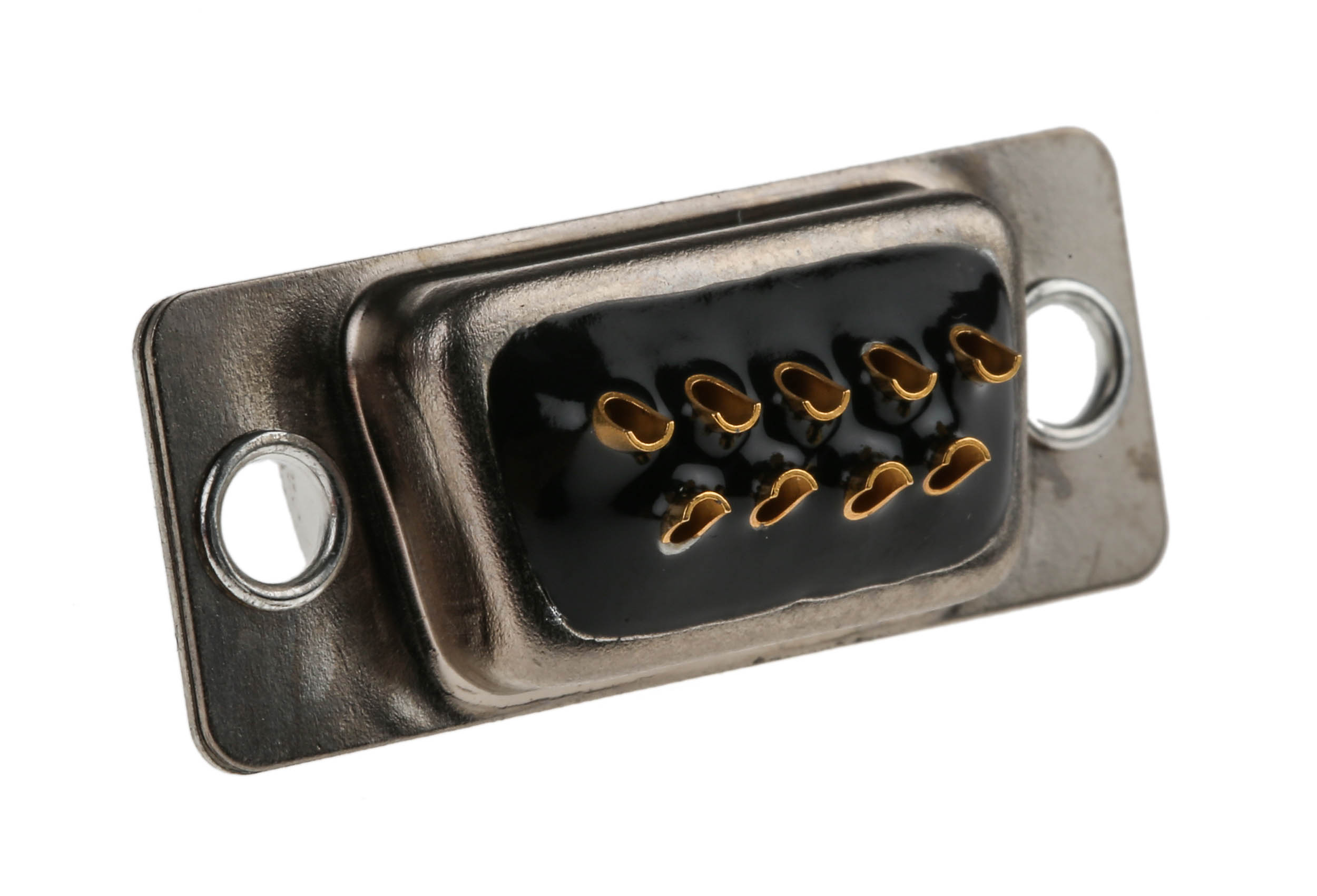

Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Socket, 9 Way, 200 V ac/dc, 5A

Enrgtech Part No: ET16916500
|
Manufacturer Part No:
RS000120000EL1K
|
Manufacturer: Cinch

RS000120000EL1K Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Socket, 9 Way, 200 V ac/dc, 5A

Product Information

Current Rating:

5.0A

D-Sub Shell Size:

Mounting Type:

Panel Mount

Voltage Rating:

200.0 V

Gender:

Female

Body Orientation:

Straight

Pitch:

2.76mm

Termination Method:

Solder

D Connector Type:

Filtered D-Sub

Housing Material:

Steel

Width:

12.55mm

Length:

30.81mm

Checking for live stock

Step up to uncompromising signal integrity with the Cinch FD Series Panel Mount Filtered D‑Sub Connector Socket, model RS000120000EL1K. Engineered for high‑reliability applications, it delivers robust EMI/RFI suppression and seamless integration across industrial, telecom, and aerospace environments. Each contact includes an epoxy-encapsulated tubular capacitor engineered to limit EMI, typically about 1000 pF to chassis ground, fortifying VHF/UHF noise attenuation.

Unique Features of this Filtered D‑Sub Connector Socket

Connector Type: Filtered D‑Sub Socket, Shell Size E, 9‑Way
Termination: Solder bucket
Mounting: Panel-mount, straight orientation
Material: Steel housing with copper‑alloy contacts; bright tin finish for enhanced shielding
Pitch: 2.76 mm
Current Rating: 5 A
Voltage Rating: 200 V AC/DC
Temperature Range: –25 °C to +125 °C
Dimensions: Width ~12.55 mm, Length ~30.81 mm

Unparalleled Benefits to Users

Precision Filtering: Internal capacitive filters deliver exceptional EMI rejection without bulky add‑ons.
Sturdy Build: A steel shell and solder-bucket contacts ensure high mechanical resilience and long-term durability.
Industry-Grade Spec: Meets recognised military and telecom standards CECC, MIL‑C, BS, ensuring traceable, robust performance credentials.
Wide Operating Range: Survives harsh environments (–25 °C to +125 °C), perfect for extreme‑condition deployments.
Ease of Installation: Standard panel‑mount dimensions and solder termination streamline assembly.

Why Buy It?

This connector is ideal for clients needing compact, filtered signal interfaces in control systems, instrumentation, telecom racks, and defence hardware. Trust Cinch’s FD Series for durable, EMI‑robust D‑Sub interconnects engineered to deliver clarity and dependability.
