3M 10114-3000PE

Enrgtech Part No: ET11857294
|
Manufacturer Part No:
10114-3000PE
|
Manufacturer: 3M

Product Information

Series:

101

Current Rating:

Contact Plating:

Gold over Nickel

Mounting Type:

Cable Mount

Number of Contacts:

Gender:

Male

Body Orientation:

Straight

Termination Method:

Solder

Length:

18.2mm

Housing Material:

Steel

Width:

9.1mm

Depth:

19.3mm

Checking for live stock

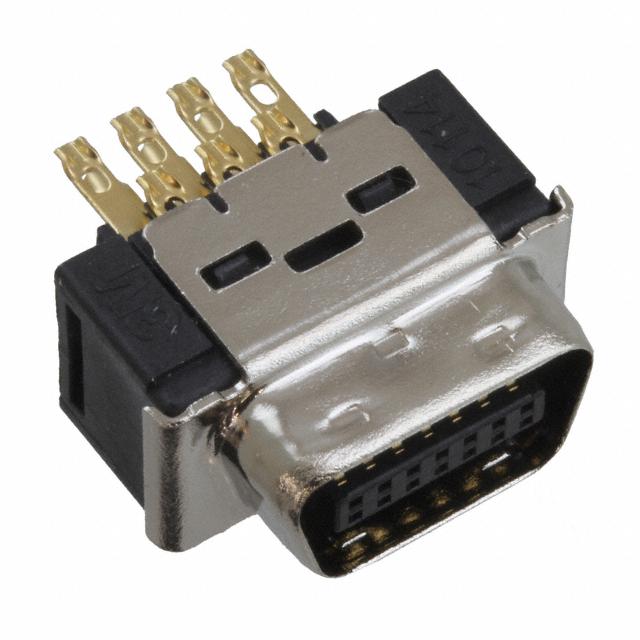

The 10114-3000PE from 3M is a 14-position, 2-row, shielded mini-D ribbon (MDR) plug connector designed for cable-mount applications, using solder-cup terminations for ease of wiring. It supports discrete wire sizes from 24 AWG to 30 AWG and features gold-wiping interface contacts with a nickel under-plate, delivering reliable signal integrity for industrial and data-communications systems.

How It Benefits Users

14 positions in a compact 2-row MDR format for high-density signal routing.
Cable-mount plug with solder-cup termination, facilitating custom wiring.
Shielded steel shell with nickel plating for EMI/ESD robustness.
Gold flash contacts over nickel for low-resistance, long-life connections.
Compatible with discrete cables (24-30 AWG), allowing flexible harness design.

Designed for Reliable Interconnect in Harsh Environments

Engineered to support demanding signal applications, the 10114-3000PE ensures consistent performance even under repeated mating cycles. The robust shielding and hardened contacts make it suitable for OEM equipment, test systems, and industrial automation platforms where EMI resilience and rugged connectivity are paramount.

Usage Scenarios of the 3M 14-Way Cable Mount D-sub Connector Plug

Cable-to-board connections in instrumentation, communications or control systems.
Signal harnesses in industrial automation equipment.
Mating with corresponding 14-way MDR female connectors in data or measurement racks.
Environments requiring shielded plugs with custom wiring (e.g., 24 AWG to 30 AWG).
OEM assemblies where compact, high-density interconnects support multiple channels.
Replacement or upgrade applications in legacy MDR-101 systems.
