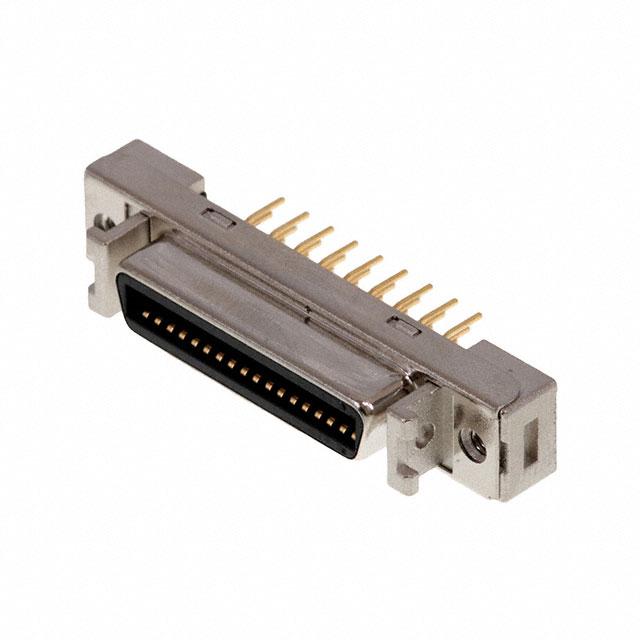

3M 10236-6212PC

10236-6212PC 3M
10236-6212PC
10236-6212PC
ET10913969
3M

Product Information

Series:
MDR 102
Current Rating:
1A
Dimensions:
43.5 x 11 x 9.1mm
Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Length:
43.5mm
Housing Material:
Zinc Alloy
Width:
11.0mm
Depth:
9.1mm
Contact Plating:
Gold over Nickel
Pitch:
1.27mm
Number of Contacts:
36
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-20.0°C
Contact Material:
Copper Alloy
Flange Feature:
Housing/Shell (M2.6)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Connector Style:
Outer Shroud Contacts
Contact Finish Thickness:
30.0µin (0.76µm)
Type:
-
Number of Positions:
36
REACH Status:
REACH Unaffected
edacadModel:
10236-6212PC Models
Number of Rows:
2
edacadModelUrl:
/en/models/1091807
Manufacturer:
3M
Connector Type:
Receptacle
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
12 Weeks
Features:
Shielded
Mounting Type:
Panel Mount, Through Hole
Series:
102, Mini D Ribbon (MDR)
Packaging:
Bulk
Base Product Number:
10236
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 10236-6212PC. The product mdr 102, is a highly preferred choice for users. The product has a current rating of 1a. The given dimensions of the product include 43.5 x 11 x 9.1mm. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 43.5mm. The product also features robust zinc alloy housing material. Furthermore, the product is 11.0mm wide. The product comes in 9.1mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 1.27mm. The product contains 36 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -20.0°c. The product is made from sturdy copper alloy materials. Furthermore, housing/shell (m2.6) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It comes in outer shroud contacts connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 36. In addition, it is reach unaffected. It comes in 2 of rows. The 3m's product offers user-desired applications. receptacle Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 12 weeks standard lead time. The splendid features of the product include shielded. The product is available in panel mount, through hole configuration. The product 102, mini d ribbon (mdr), is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 10236, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
MDR Boardmount Vertical Receptacle - Shielded Datasheet(Technical Reference)
pdf icon
Interconnect Catalog(Datasheets)
pdf icon
MDR Series Qualification Report(Datasheets)
pdf icon
102xx-62(0,1)2PC Series Datasheet(Datasheets)
pdf icon
MDR Selection Guide(Other Related Documents)
